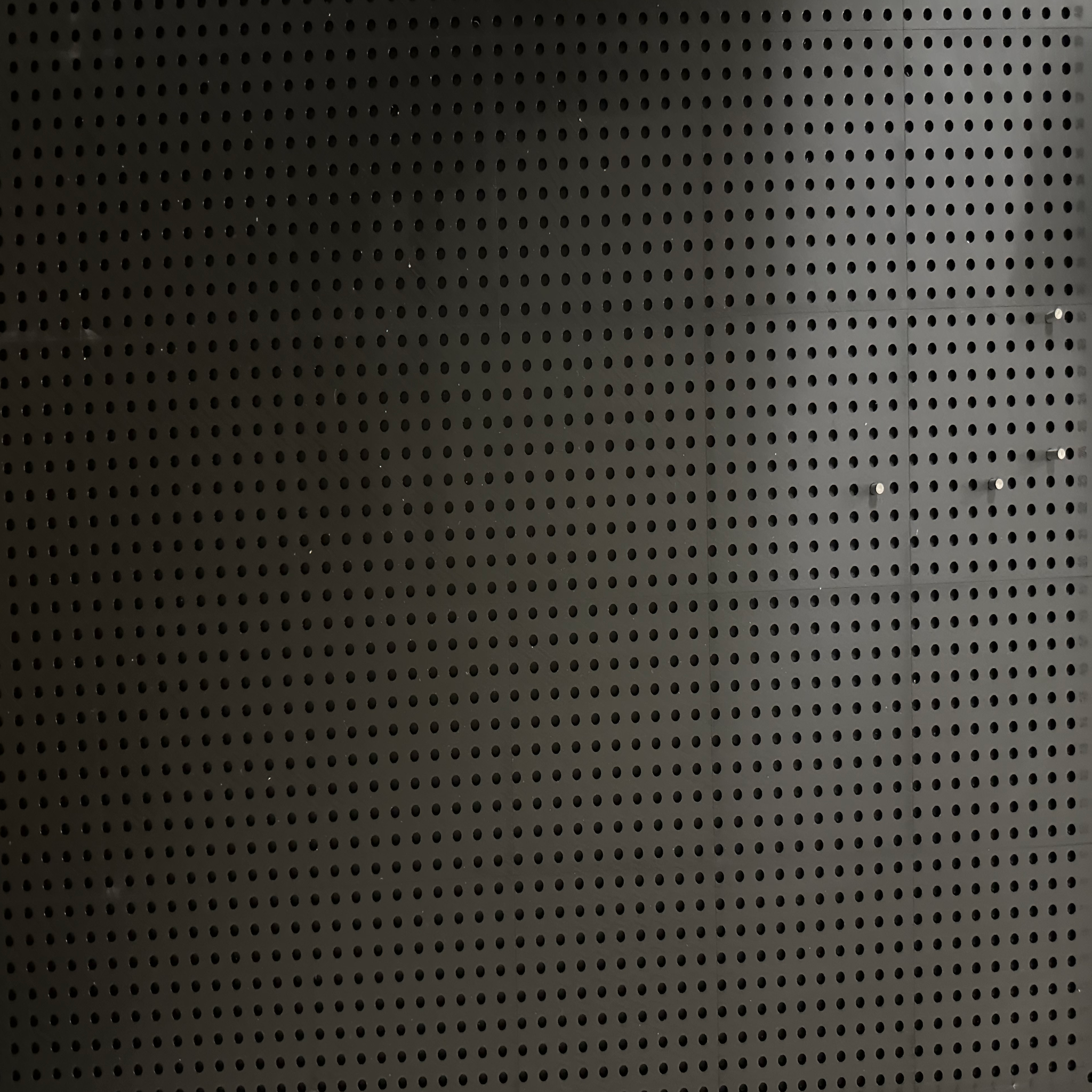

Universal Peg Board Jig for Roland BD 8 UV Flatbed Printer – with 4mm Locating Pins & Digital Template

Universal Peg Board Jig for Roland BD-8 UV Printer

Speed up setups and improve registration on your Roland BD-8 UV printer with a modular peg board jig designed for repeatable alignment and fast reconfiguration. This universal fixture plate lets you create 1-up to multi-up layouts in minutes using 4mm locating pins, making it ideal for tags, small parts, promo items, plaques, and short-run production.

Why You’ll Love This Peg Board Jig

Modular & Reconfigurable: Move pins to create new layouts without buying a new jig every time.

Repeatable Registration: Consistent part placement helps reduce misprints and wasted material.

Faster Loading: Drop parts into a pinned layout, print, unload, repeat—simple and efficient.

Scales with Your Orders: Great for prototyping, small batches, and production runs.

What’s Included

(1) Universal Peg Board Jig sized for Roland BD-8 UV printer workflows

(50) 4mm Locating Pins for flexible layout building

Digital Template (download) to match the peg board layout and speed up artwork placement

How It Works

Place the peg board jig on your printer bed and align it to your preferred reference position.

Insert 4mm locating pins to build a “fence” or pocket pattern for your product.

Use the digital template to set up your print file quickly and accurately.

Load products against the pins, print, and reload with consistent placement every run.

Compatible With

Roland BD-8 UV Printer

Best For

Small product runs that change often

Multi-up layouts for higher throughput

Tags, keychains, small plaques, promo pieces, and flat items needing consistent placement

Shops that want fewer custom jigs and more flexibility

Notes

For best results, confirm print head clearance and maintain safe spacing between items.

If you want a dedicated “perfect-fit” pocket jig for a specific product, we can also build fully custom jigs from your samples.

Need Help Choosing a Layout?

Message us with your product dimensions and target quantity-per-run, and we’ll recommend an efficient multi-up arrangement for your Roland BD-8 UV printer.
