Revit Structural Concrete Columns

The native Autodesk library is missing dozens of essential column shapes—so we built them. Our Revit Concrete Columns Collection expands your toolkit with 17 fully parametric families that go beyond the basics. Designed for real-life architecture and engineering needs, this set fills the gaps left in Revit’s default content.

📌Revit Slanted Columns

Toggle between vertical and slanted positions with ease.

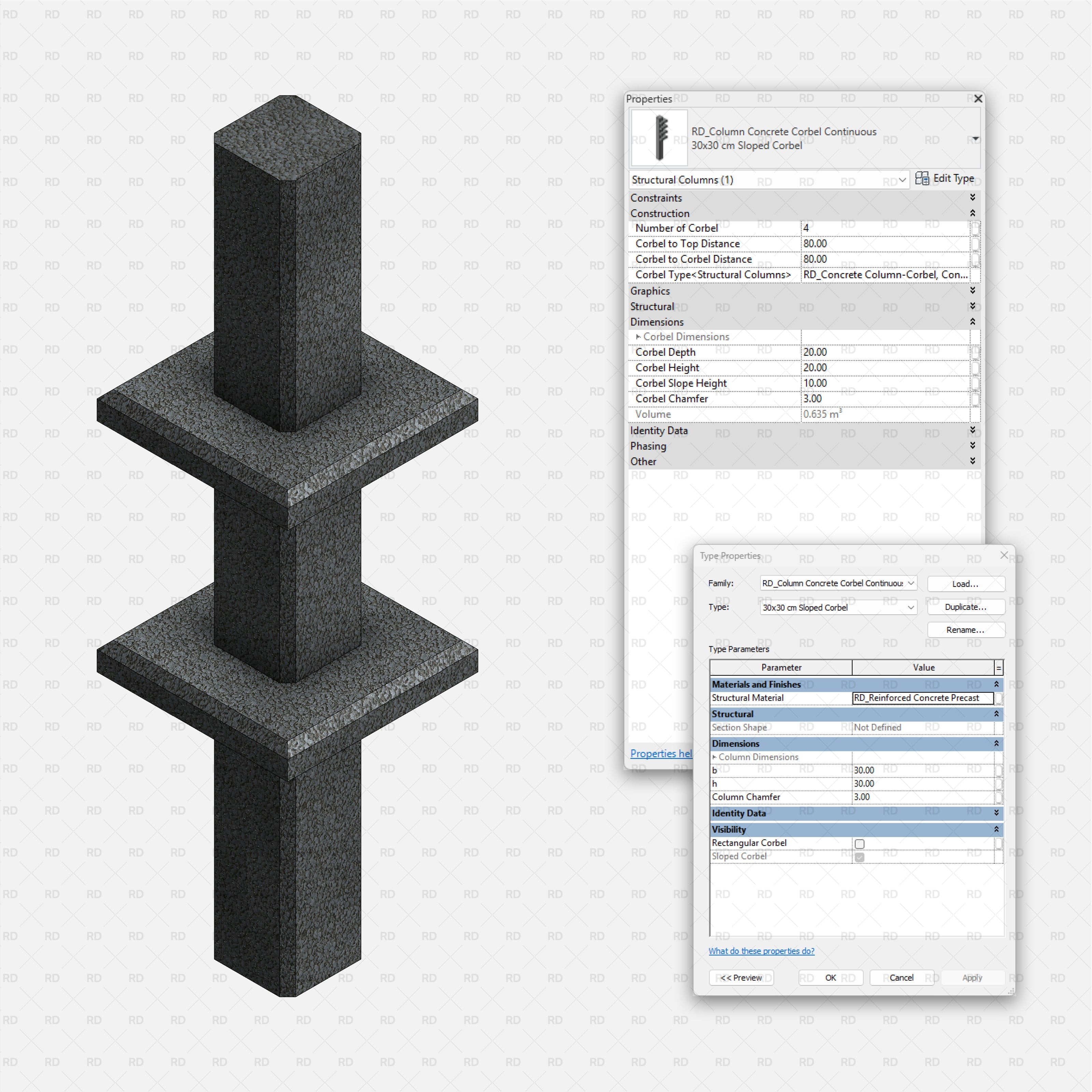

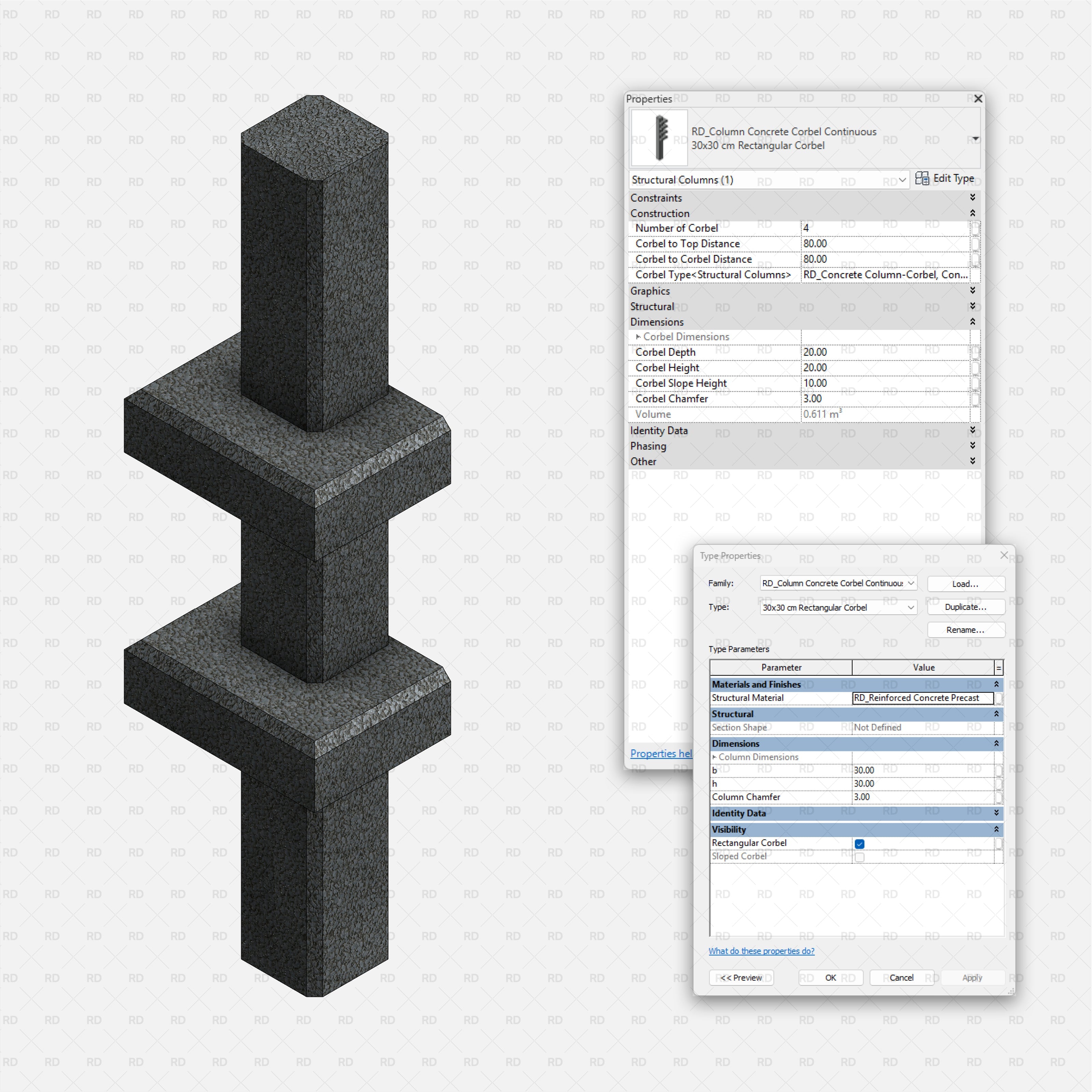

🛠 Revit Corbel Columns

Quickly control the number of corbels in your concrete column with a single parameter.
This flexible Revit family lets you toggle between single or multi-layered corbel configurations in seconds—no remodelling needed. Perfect for architects and engineers looking to streamline detailing while maintaining structural clarity.

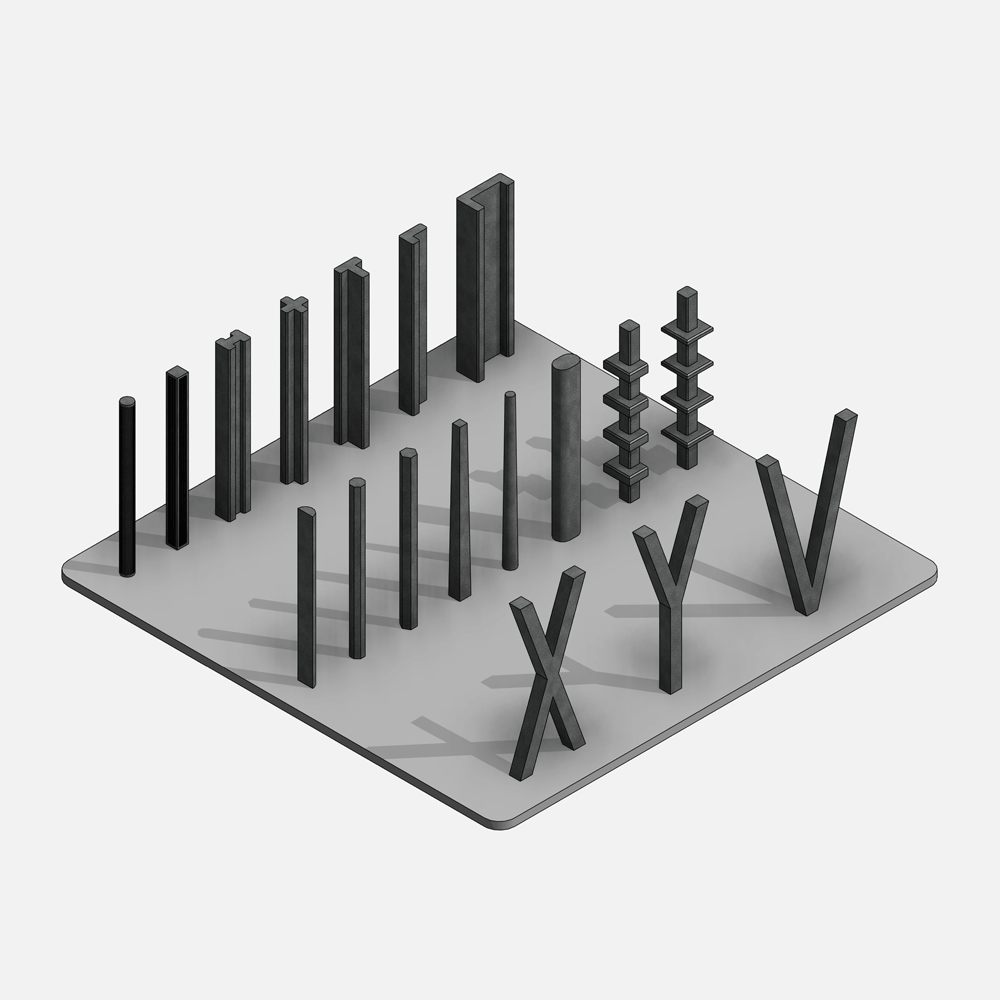

Download a pack of 17 Revit Concrete Structural Columns

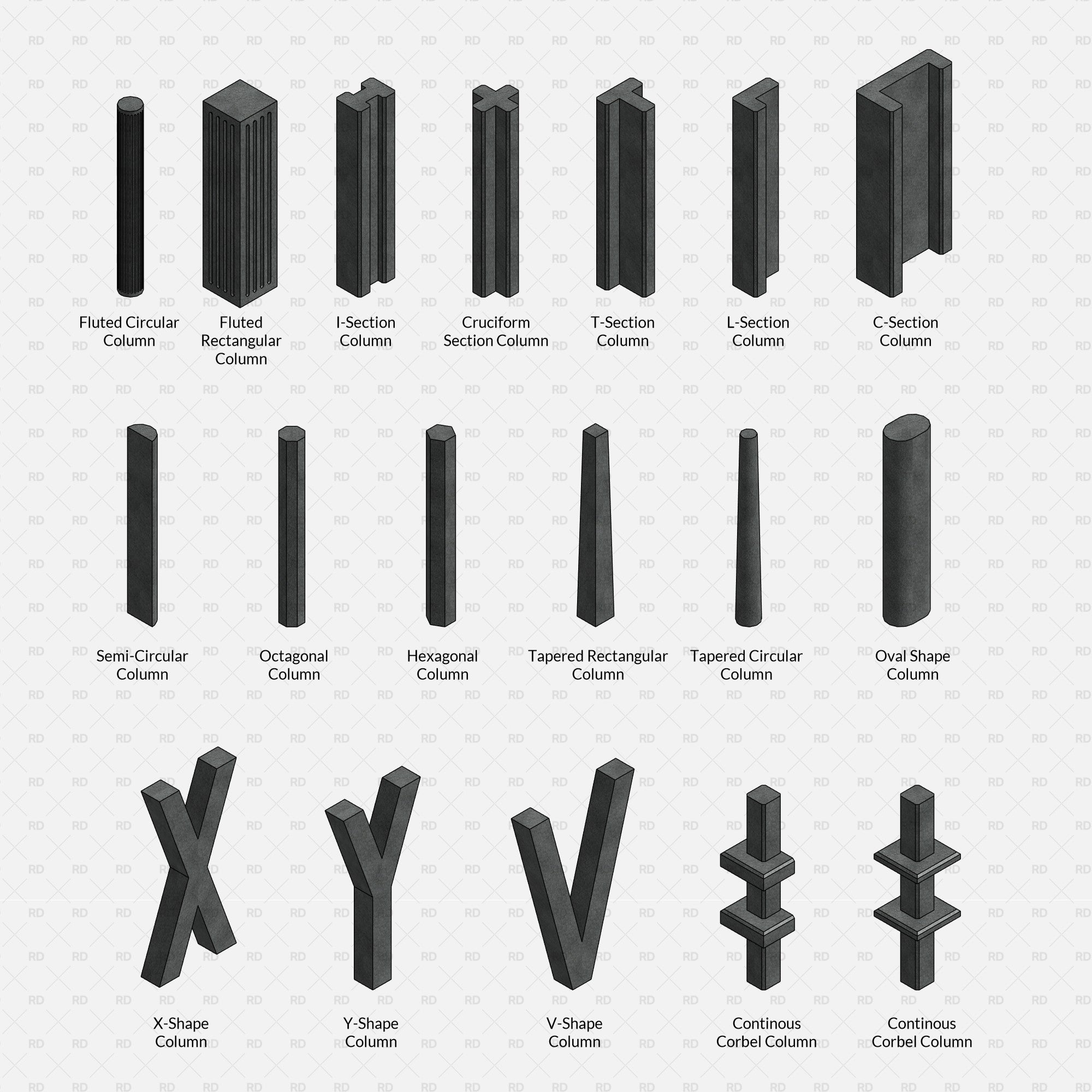

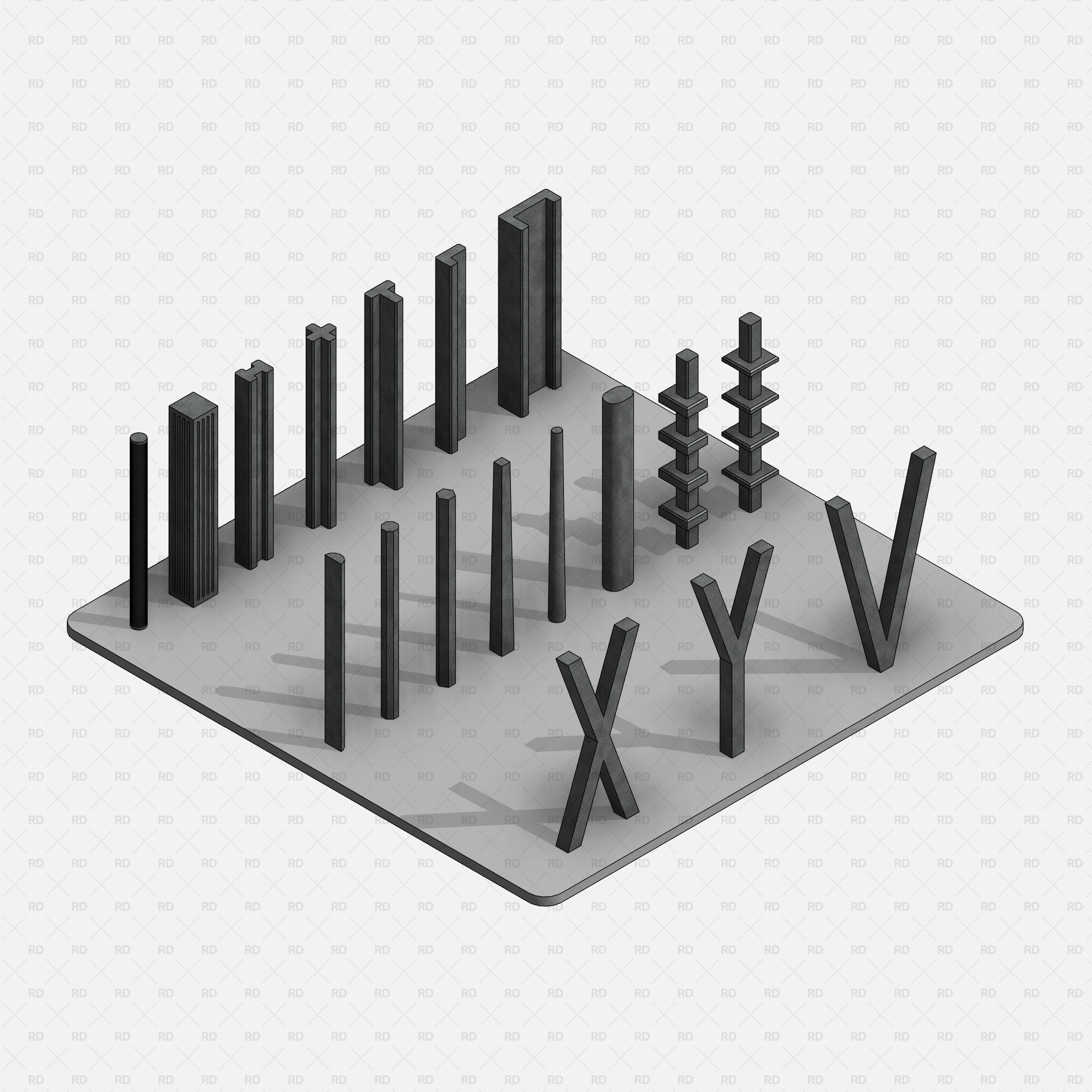

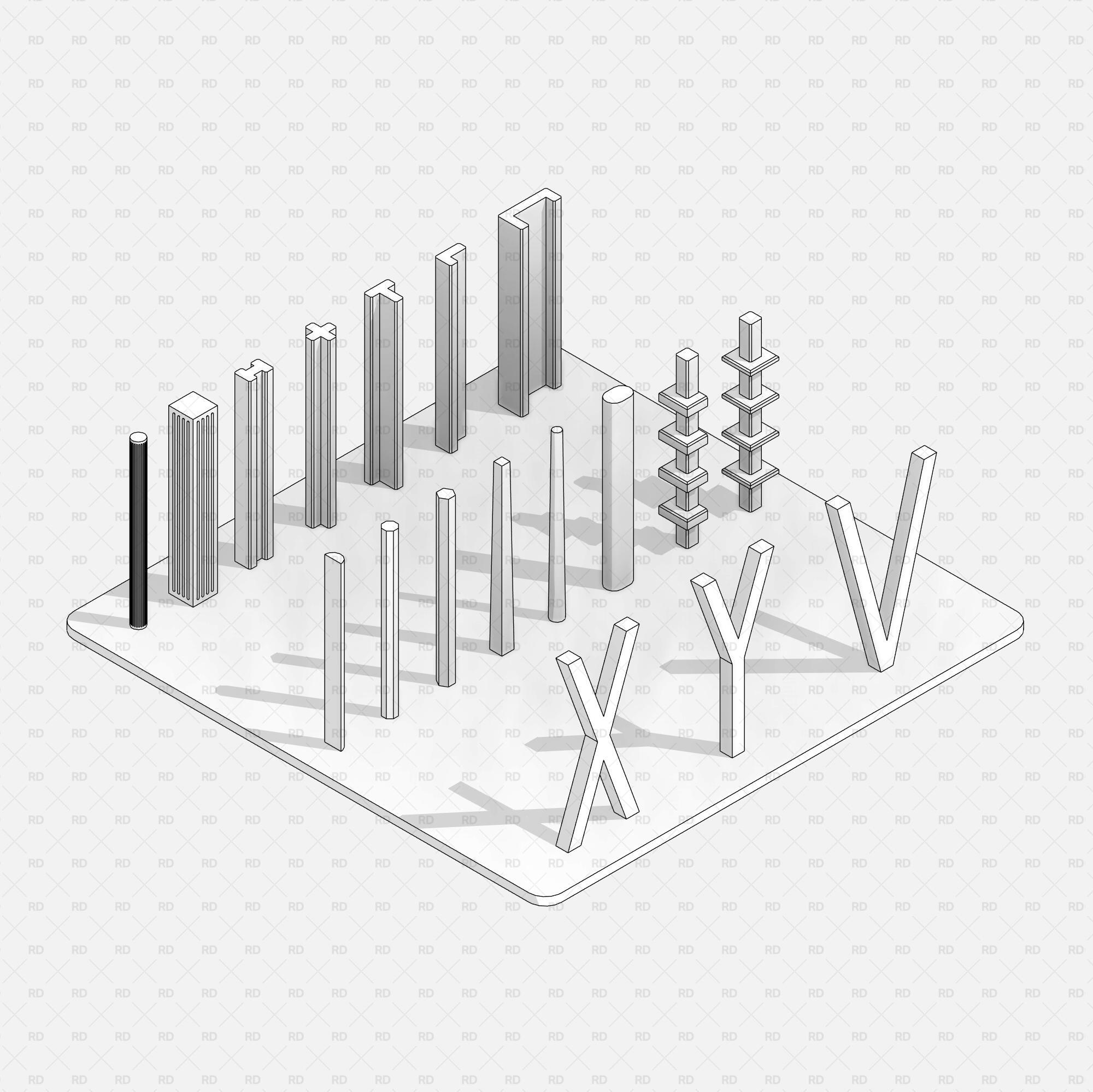

Revit Structural Concrete Columns:

1. Revit Concrete Column Corbel Continuous_I

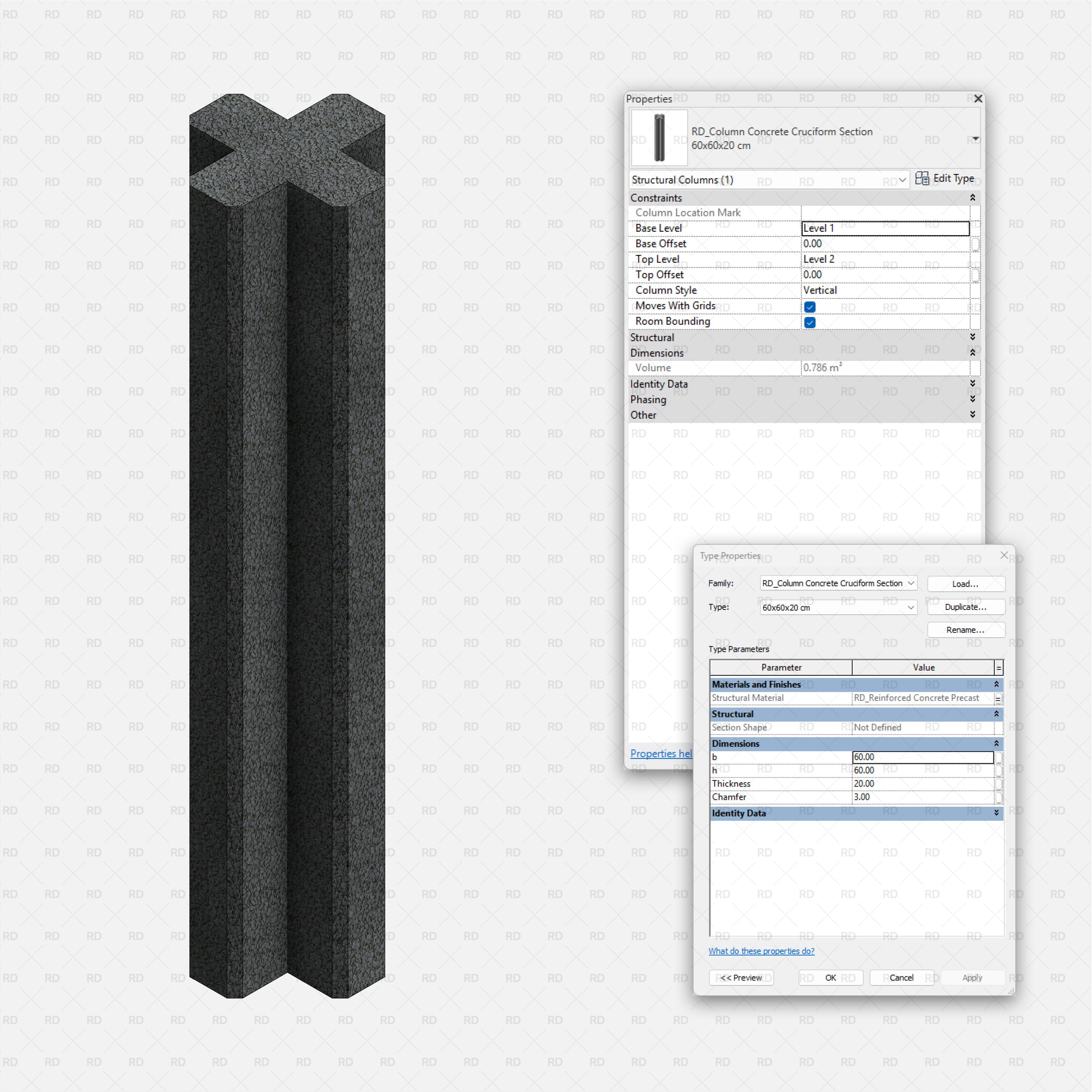

2. Revit Concrete Column Cruciform Section_I

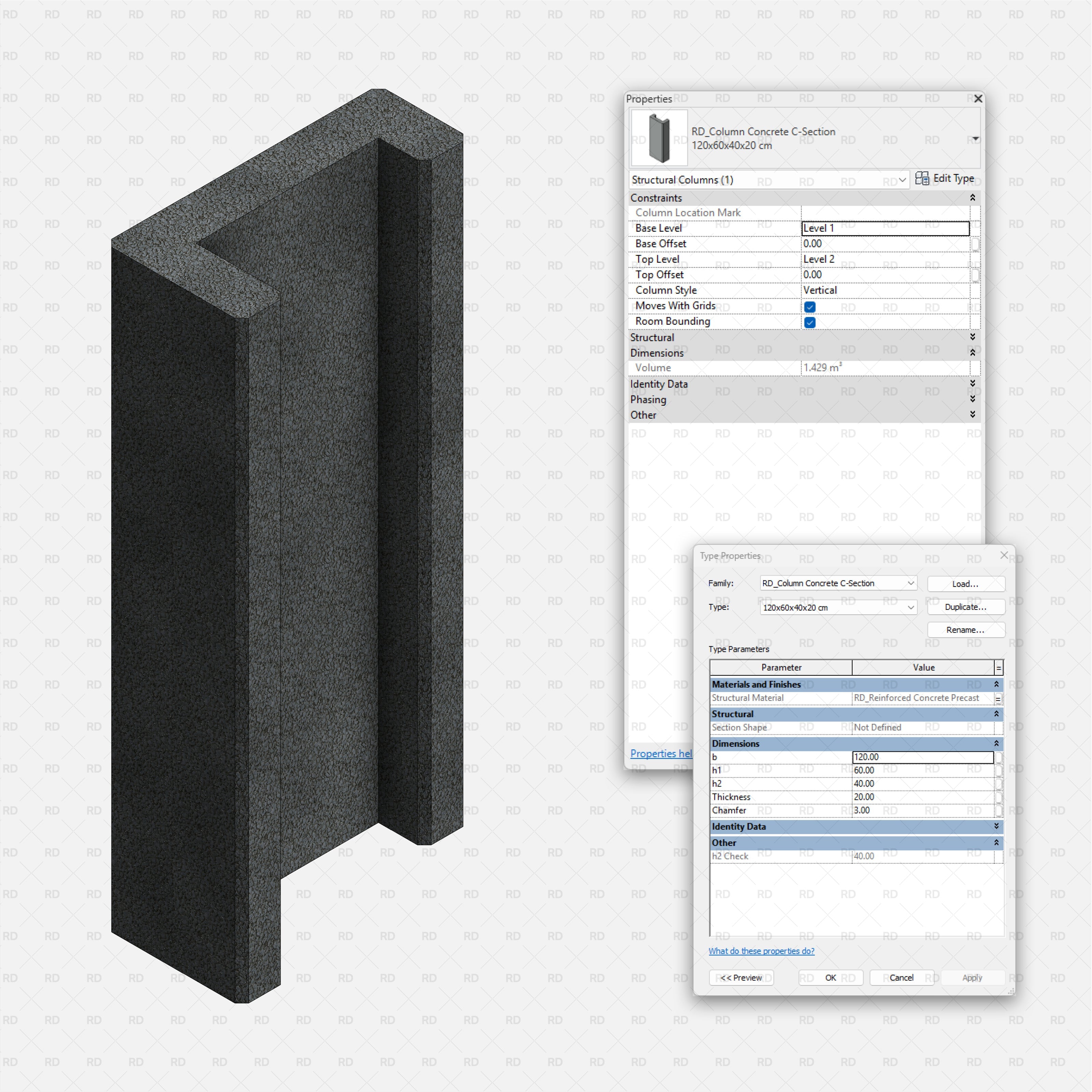

3. Revit Concrete Column C-Section_I

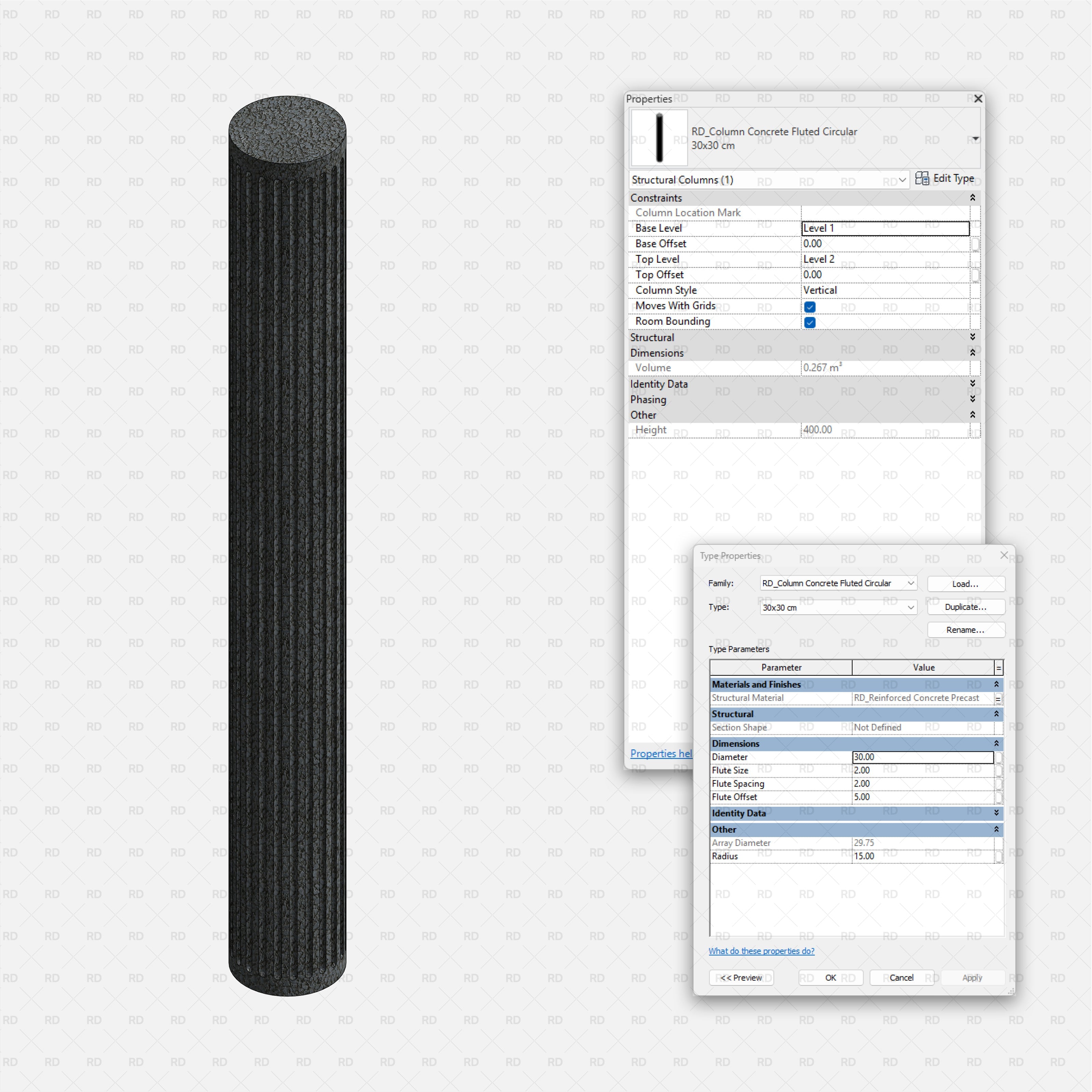

4. Revit Concrete Column Fluted Circular_I
5. Revit Concrete Column Fluted Rectangular_I

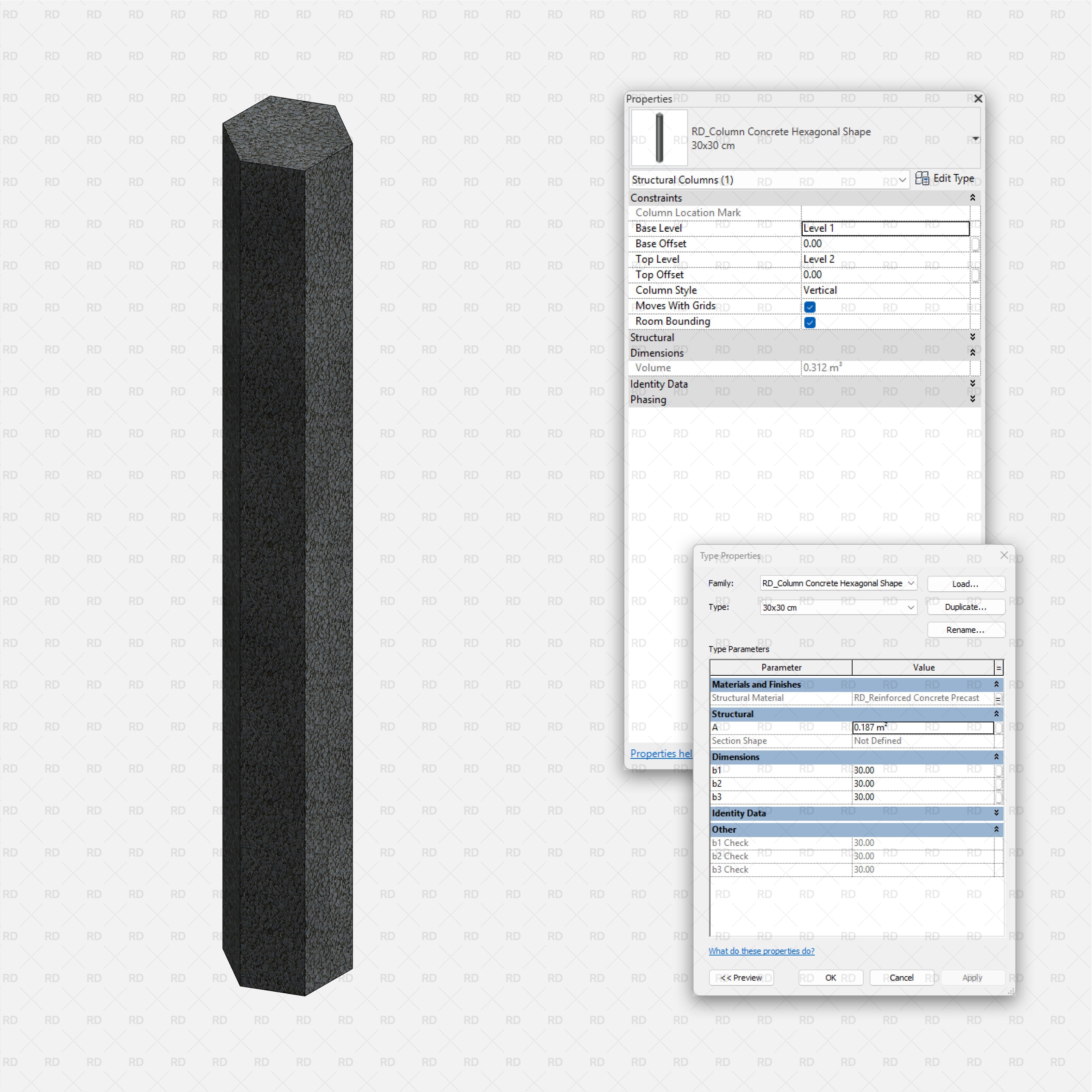

6. Revit Concrete Column Hexagonal Shape_I
7. Revit Concrete Column I-Section_I

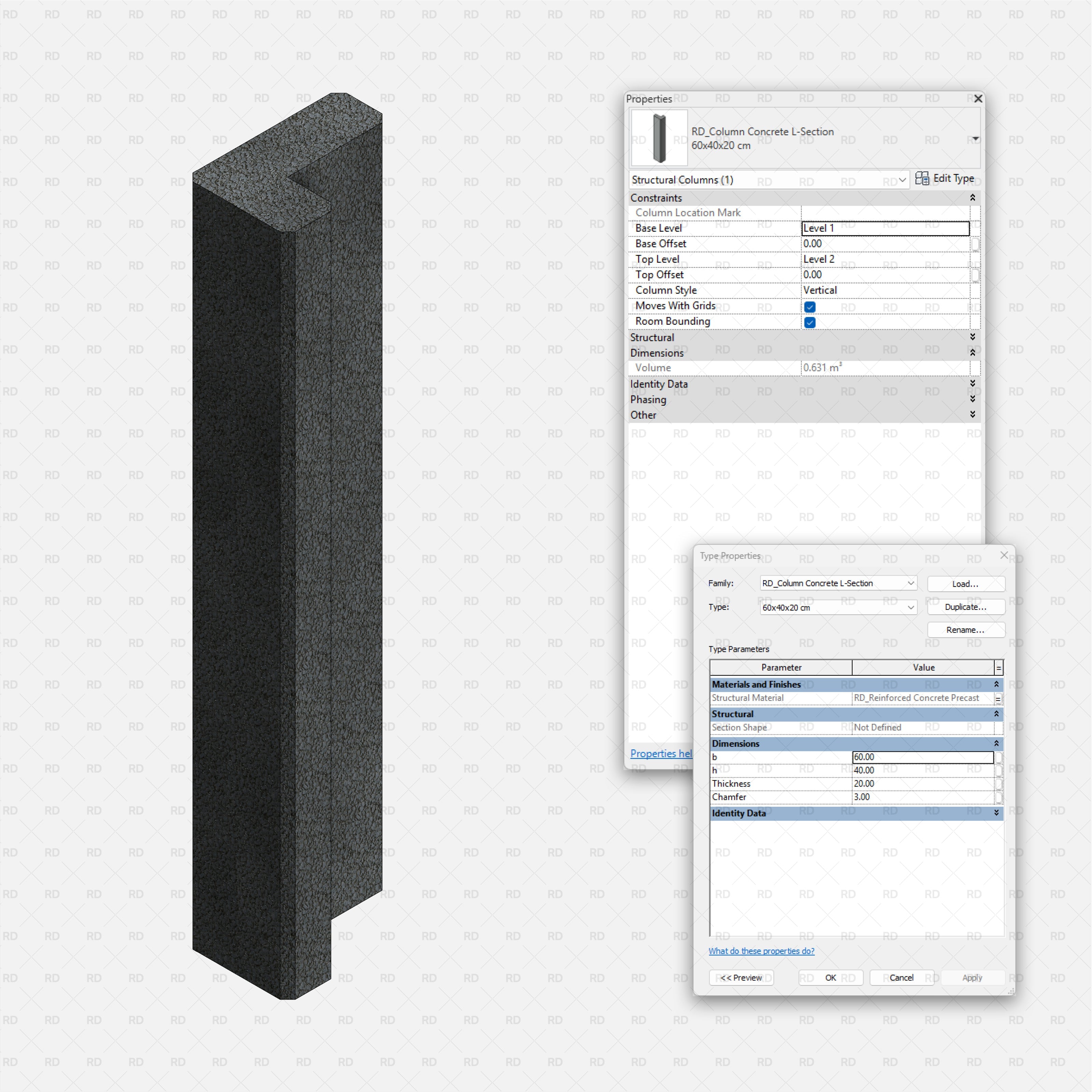

8. Revit Concrete Column L-Section_I

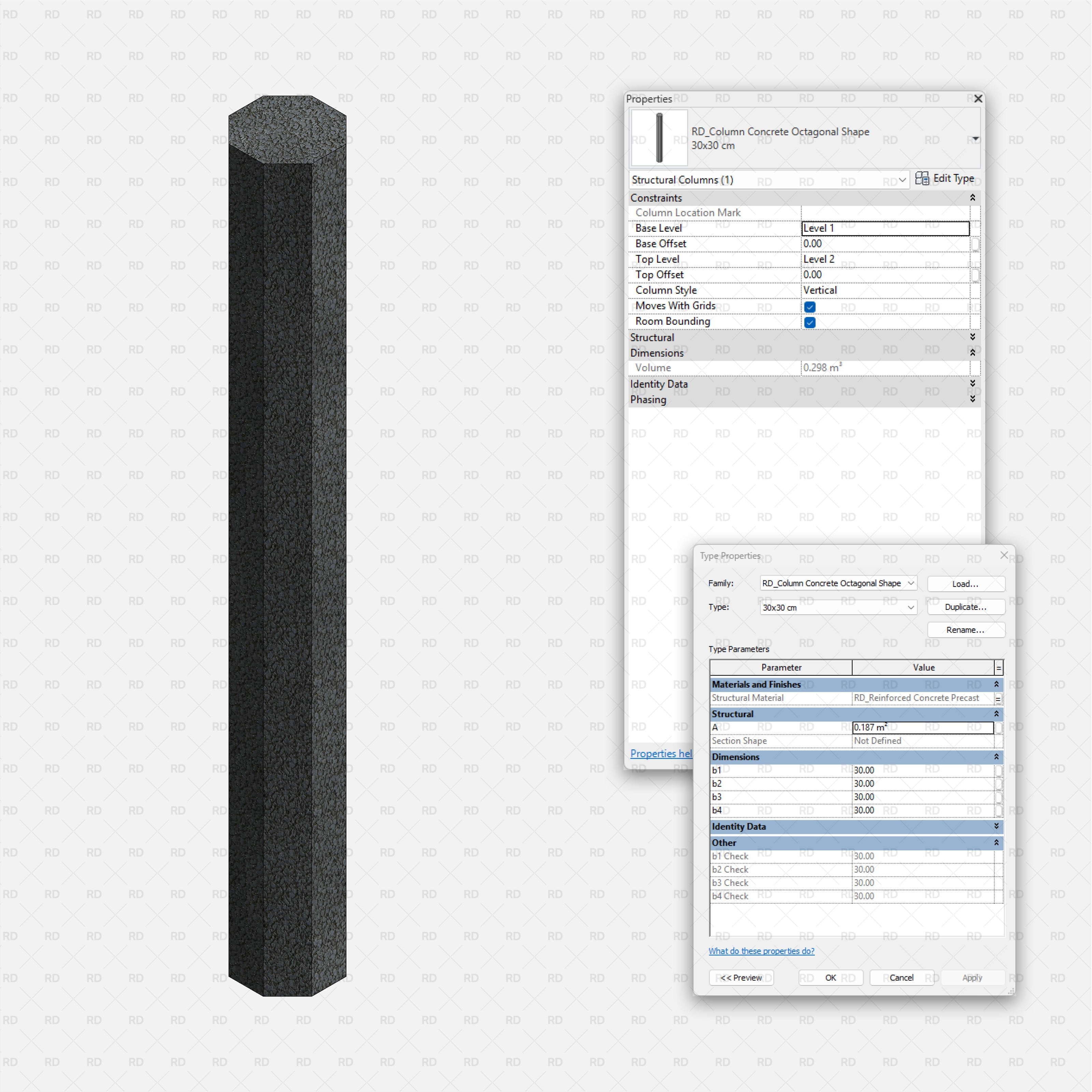

9. Revit Concrete Column Octagonal Shape_I

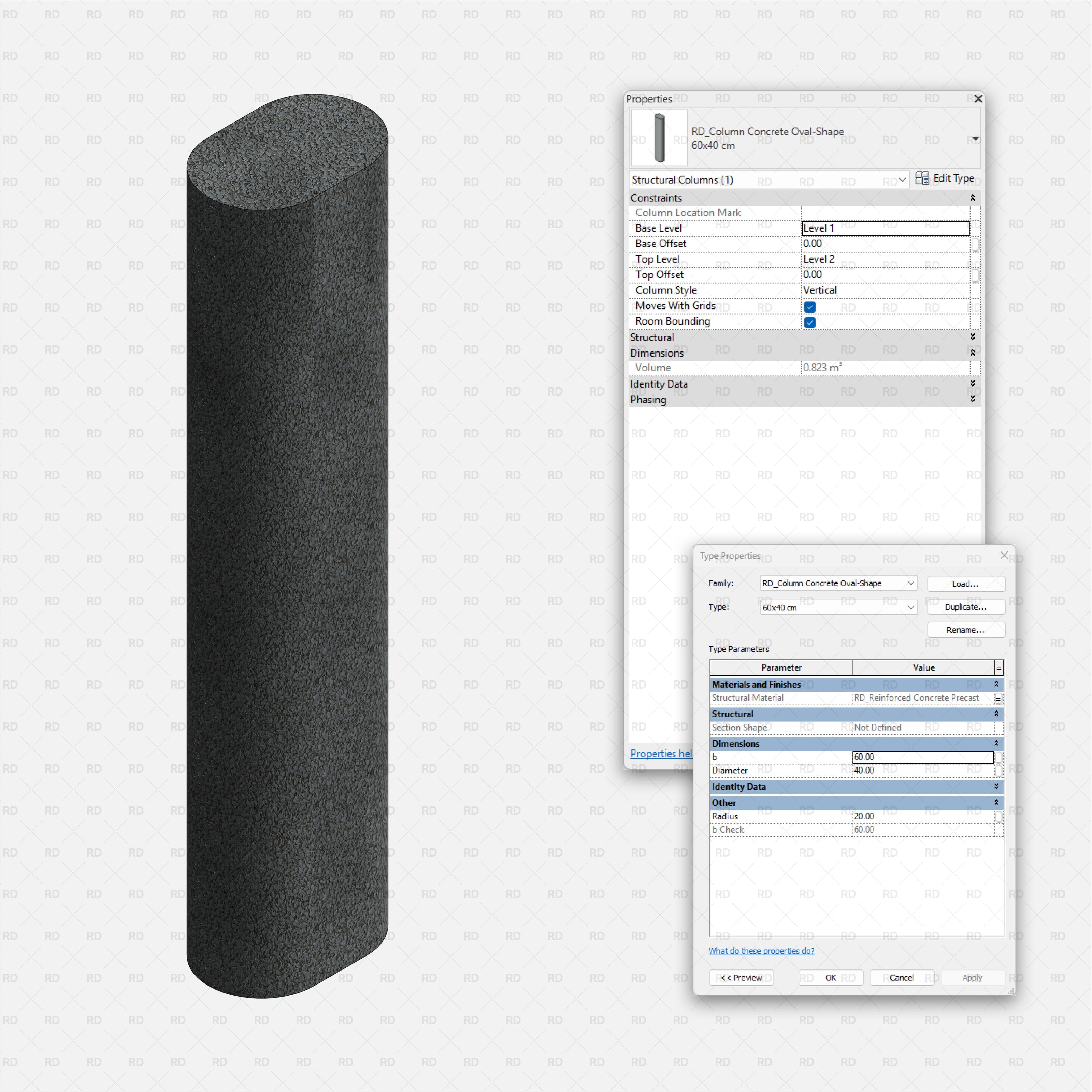

10. Revit Concrete Column Oval-Shape_I

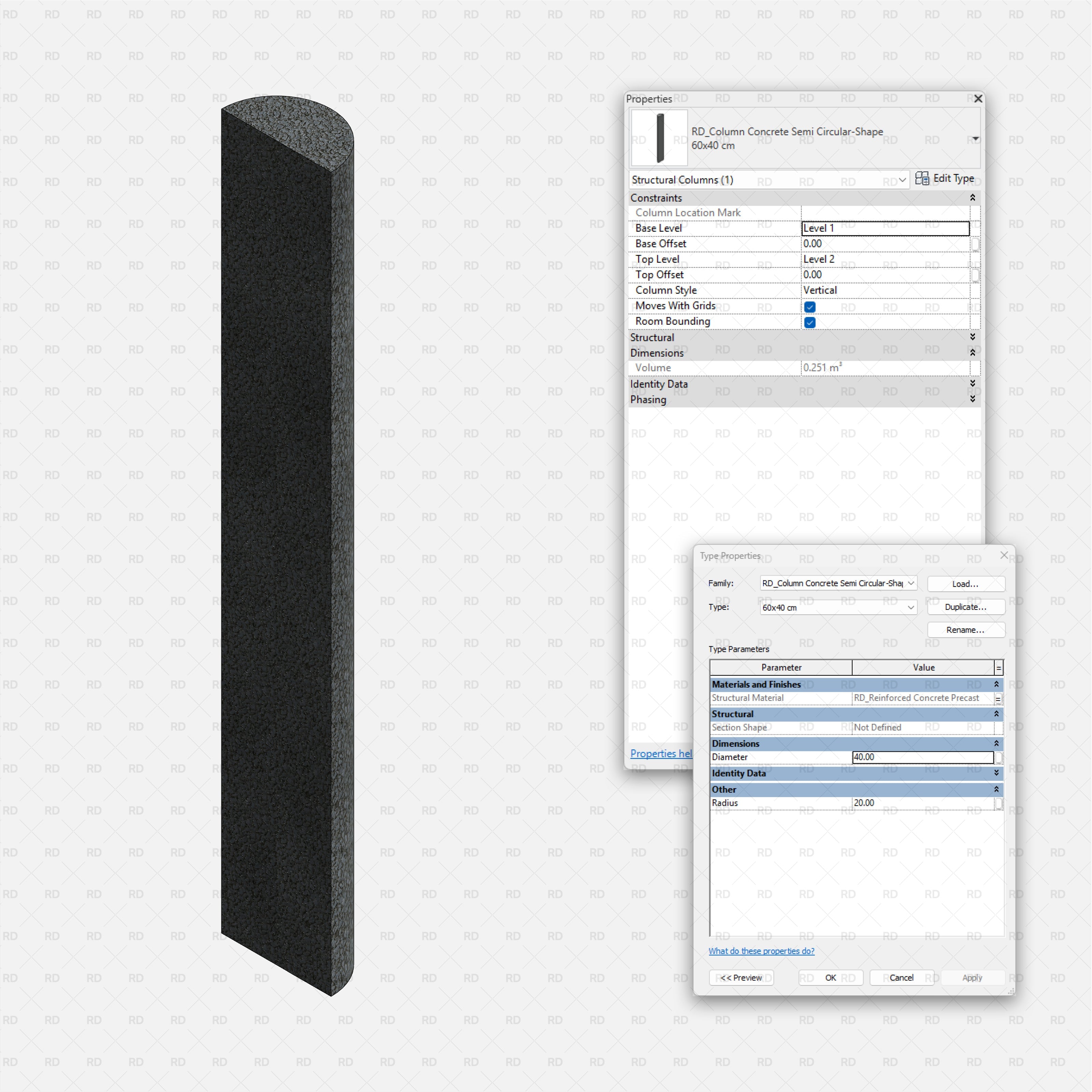

11. Revit Concrete Column Semi Circular-Shape_I
12. Revit Concrete Column Tapered Circular_I

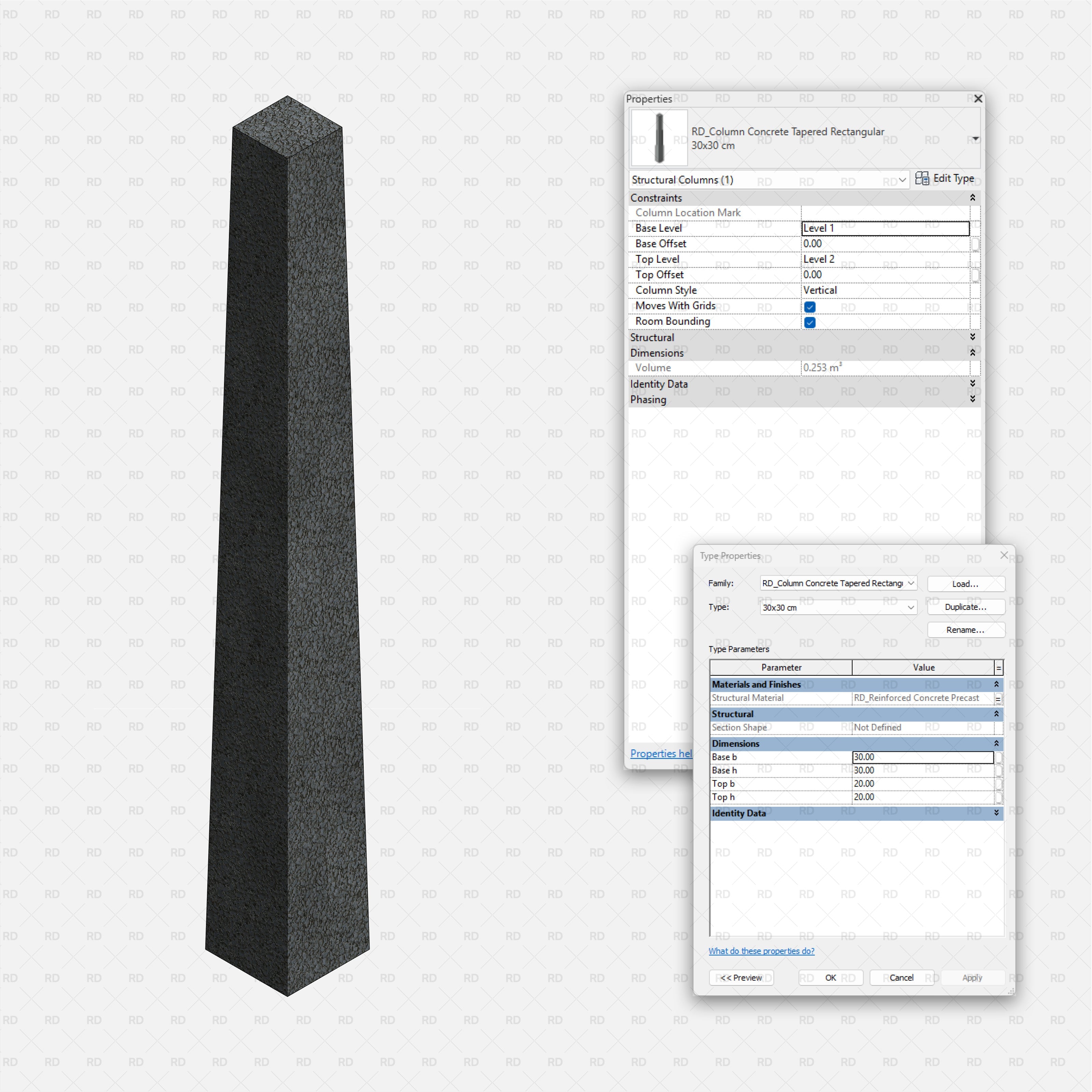

13. Revit Concrete Column Tapered Rectangular_I

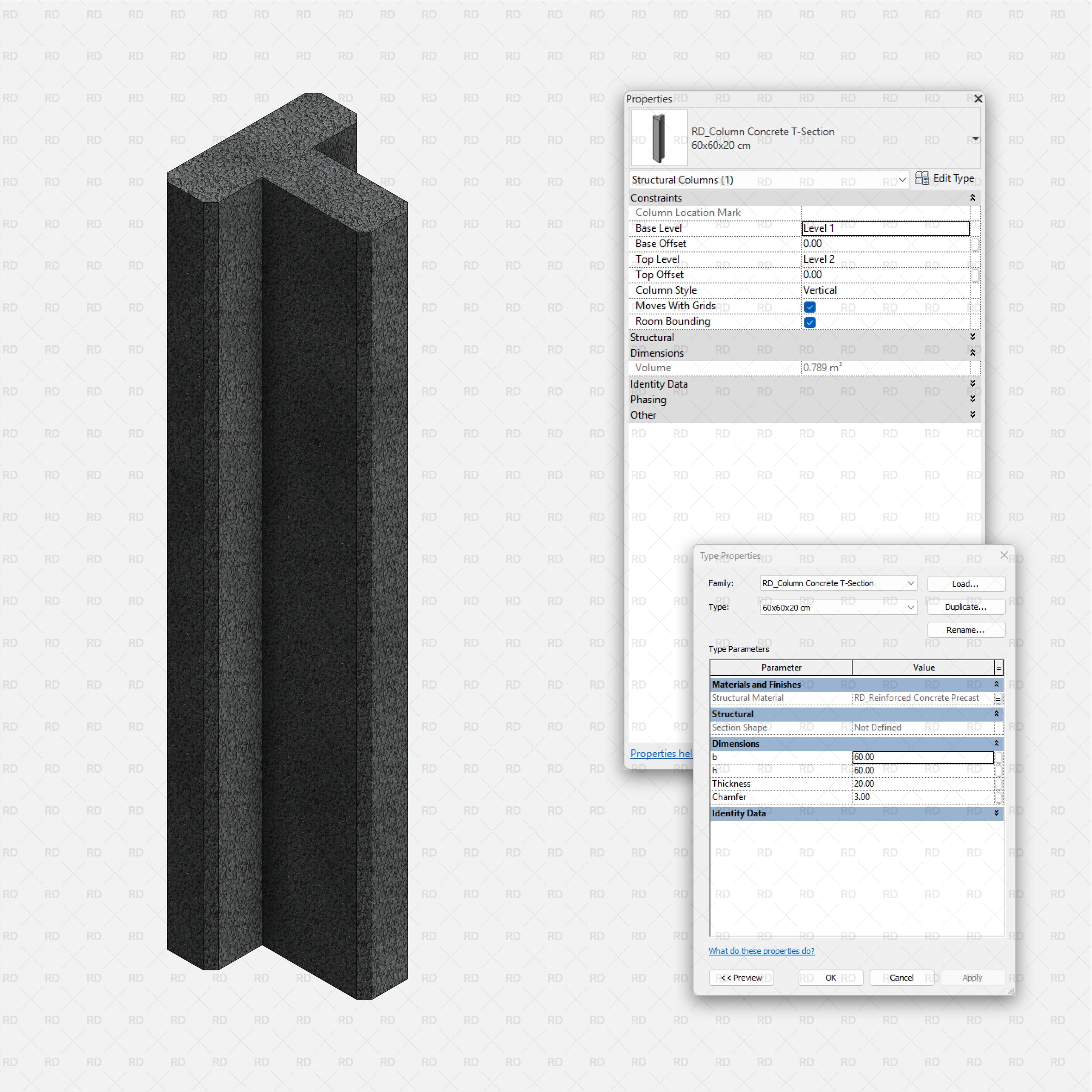

14. Revit Concrete Column T-Section_I

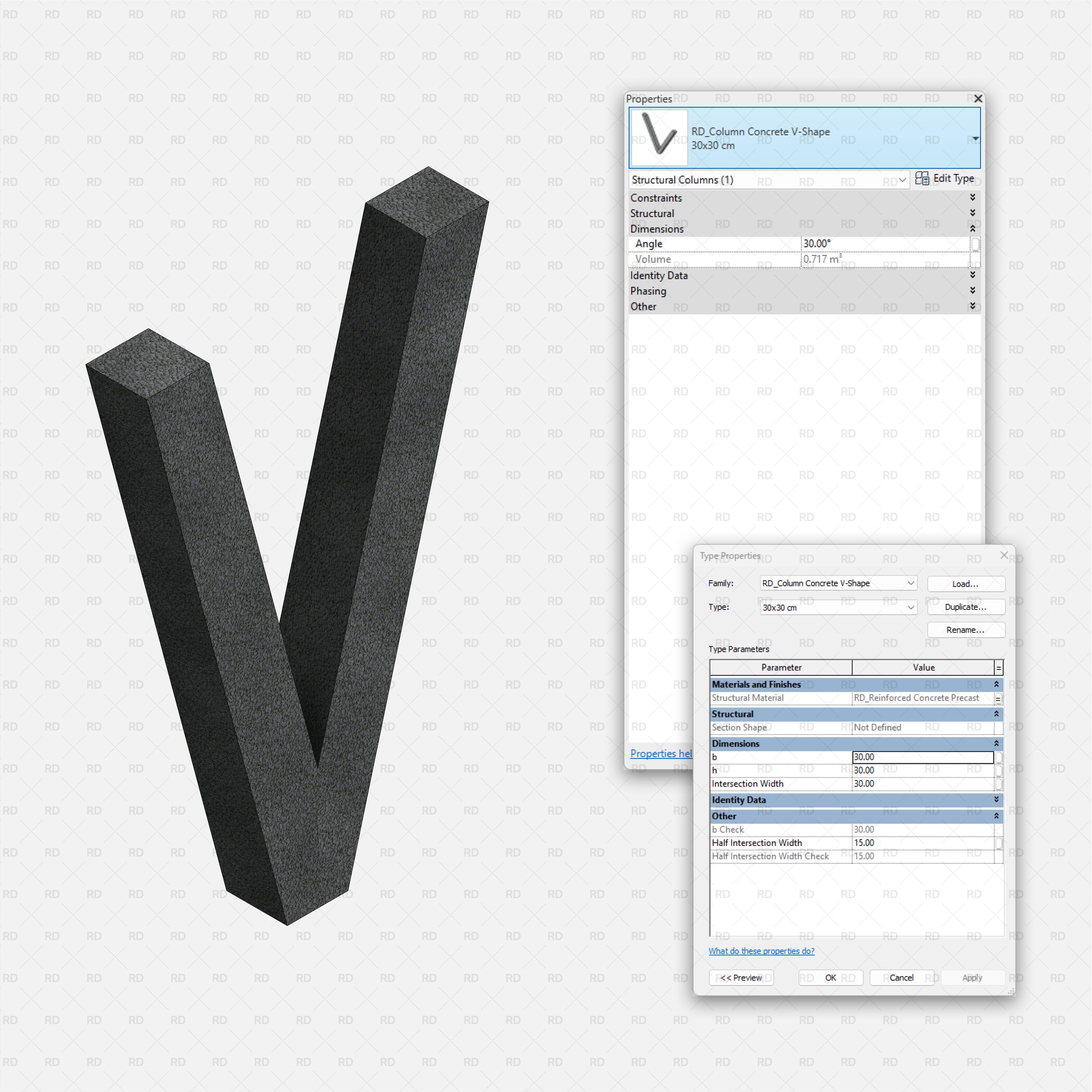

15. Revit Concrete Column V-Shape_I

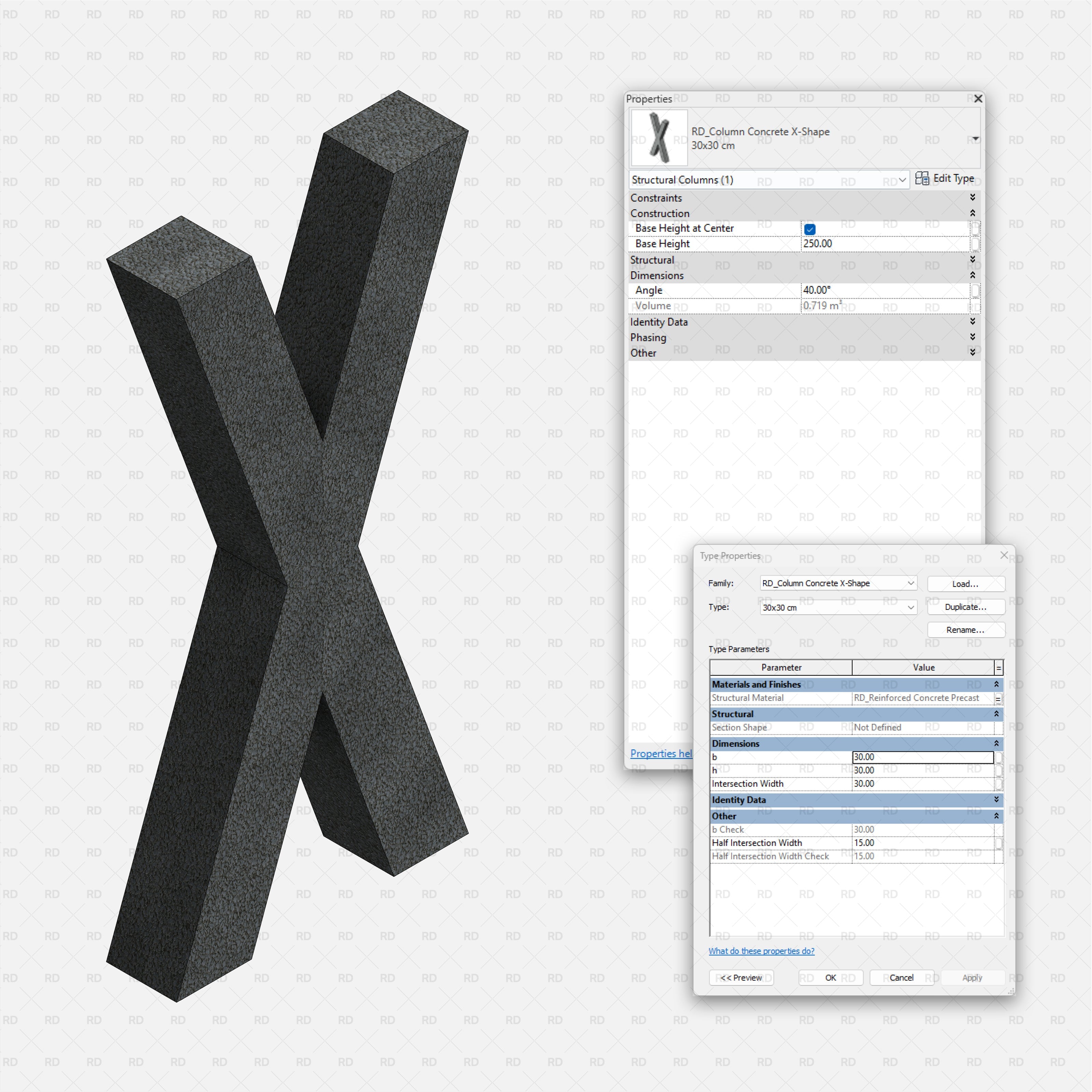

16. Revit Concrete Column X-Shape_I

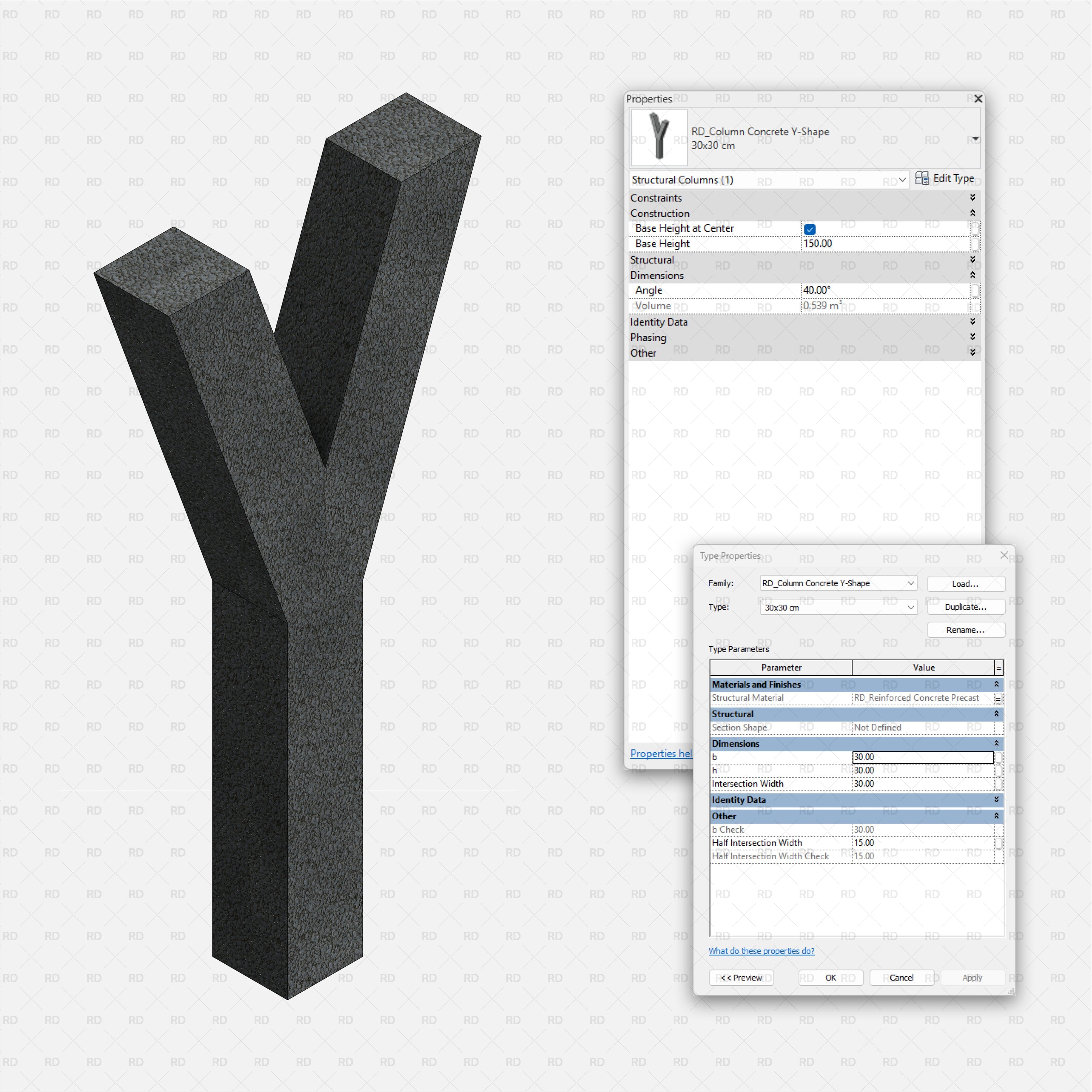

17. Revit Concrete Column Y-Shape_I

Downloads:

• The download folder includes one showroom file and 17 Revit Concrete Columns Families.
• Unit System: Metric and Imperial.
• Categories: Structural Columns
• Please make sure your Revit version is compatible with the product version
