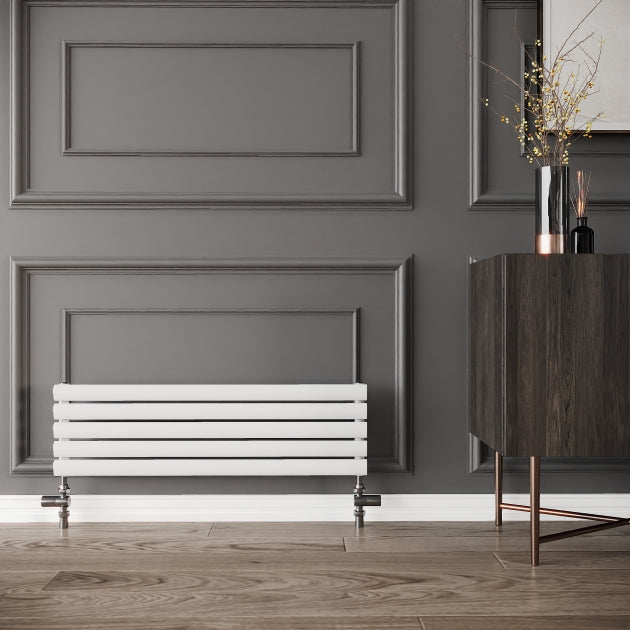

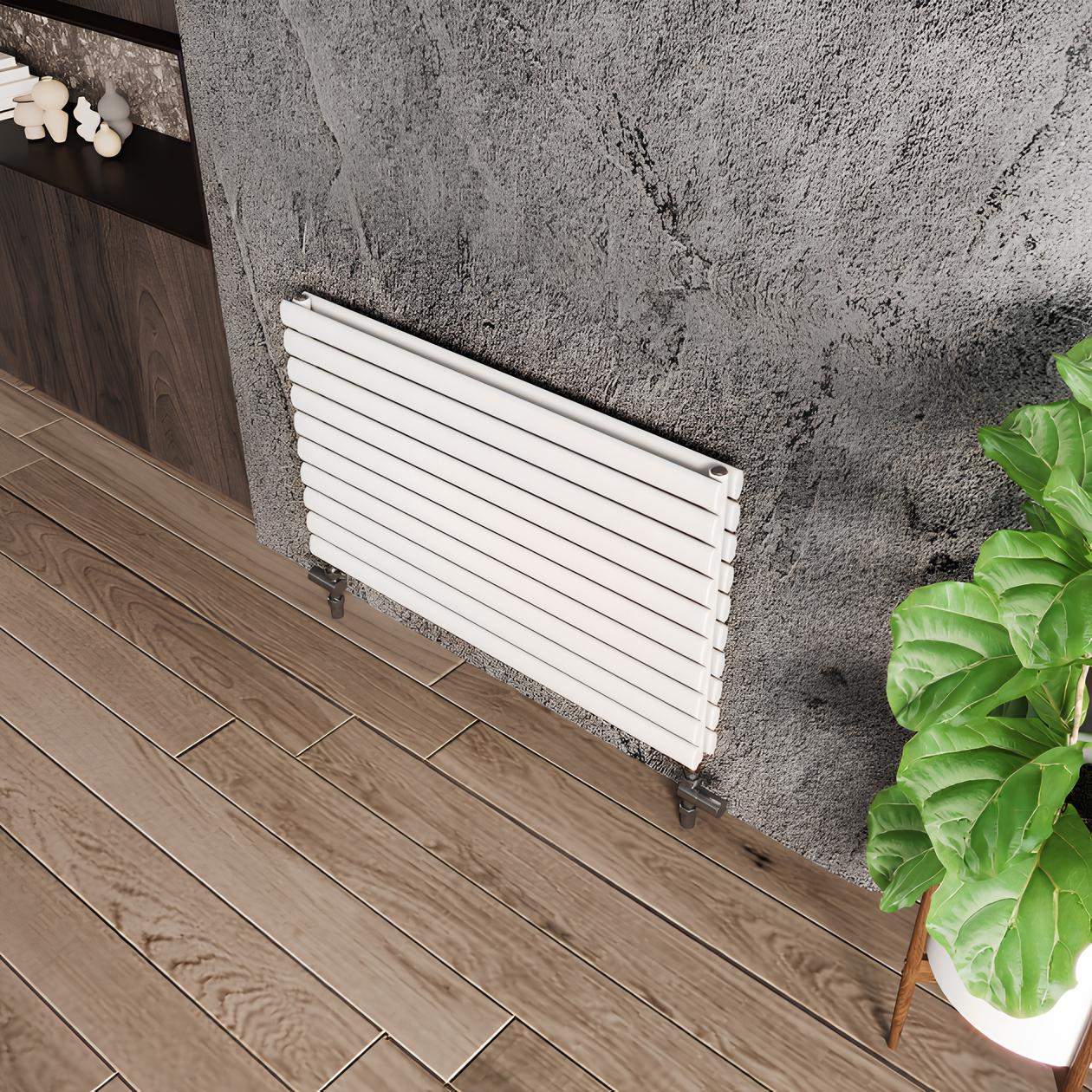

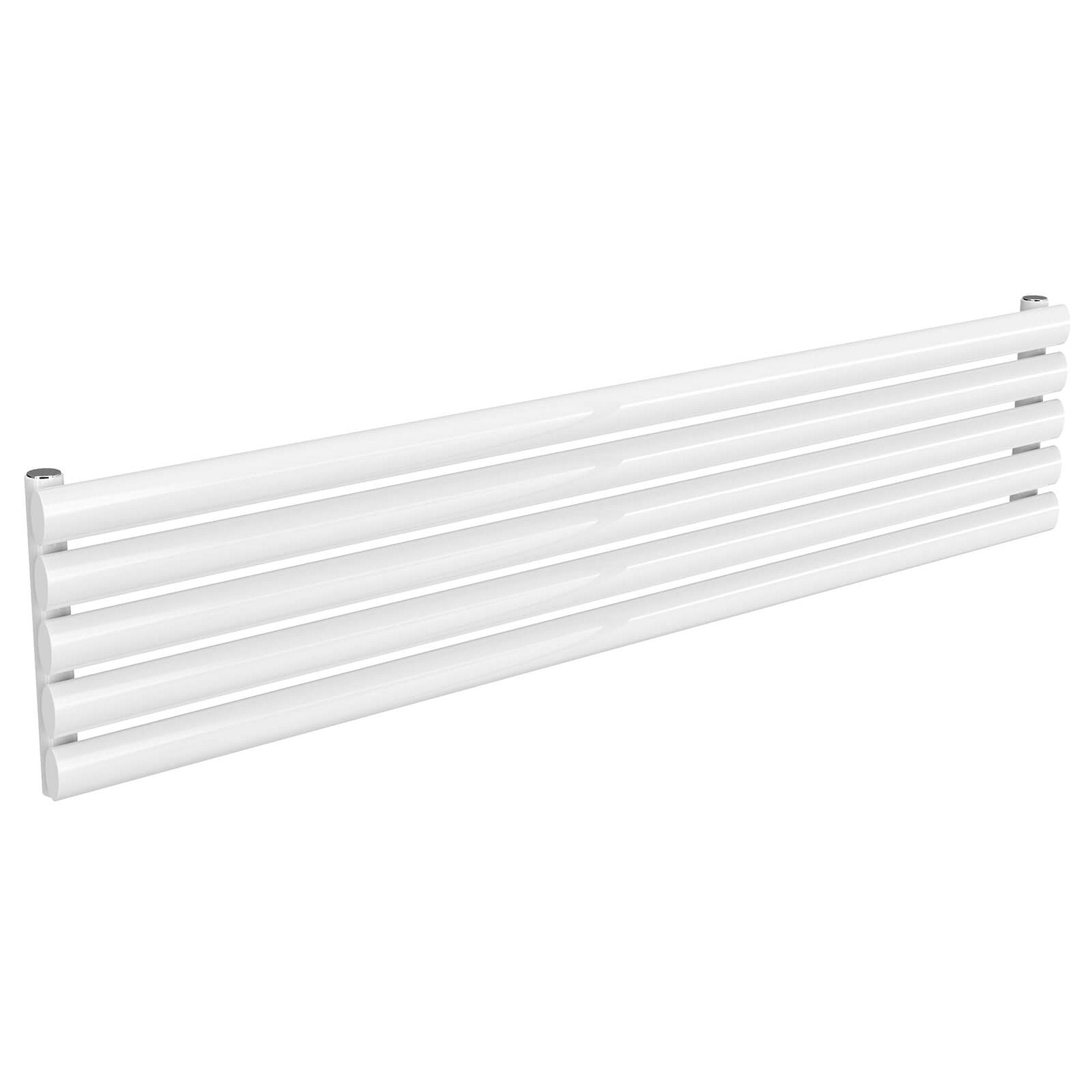

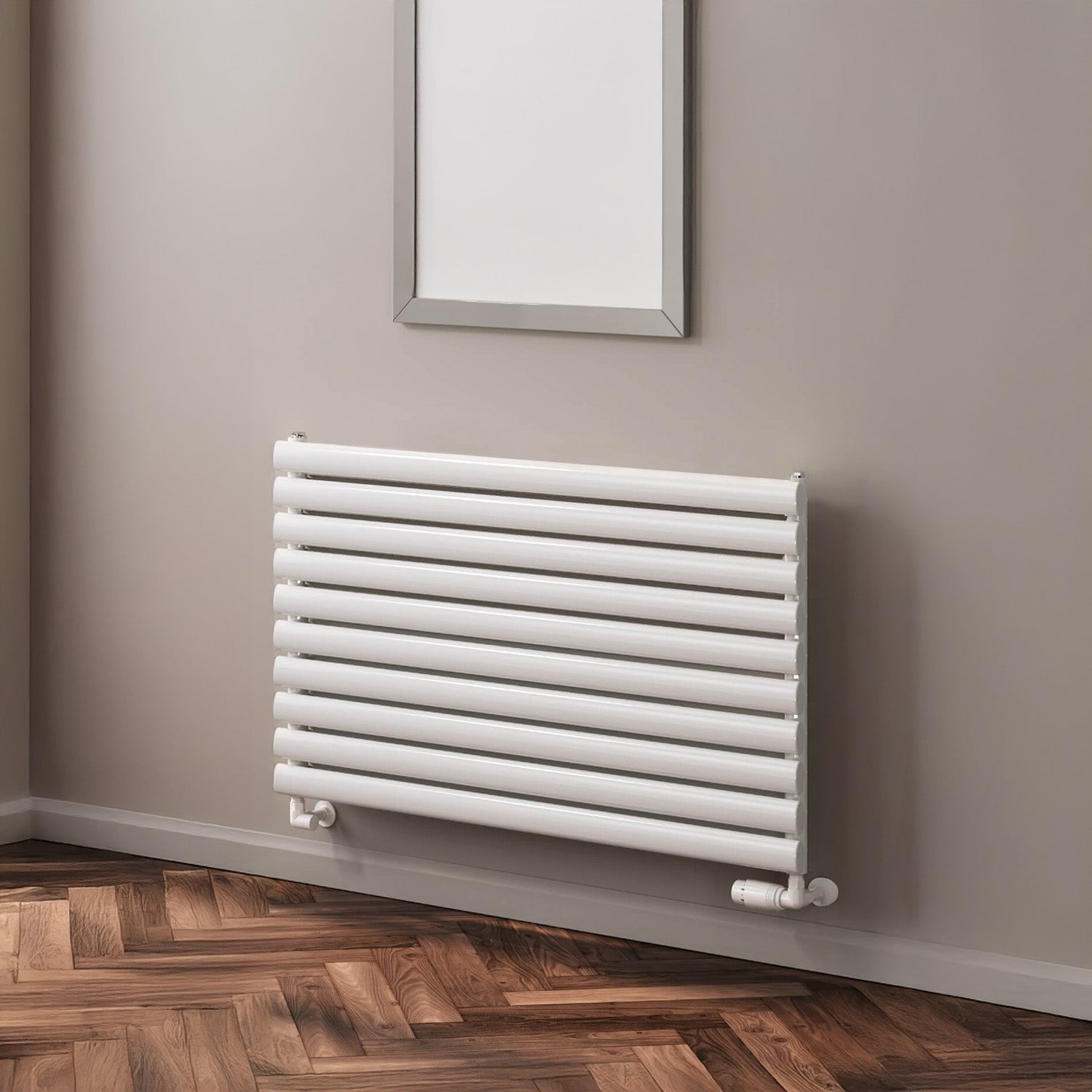

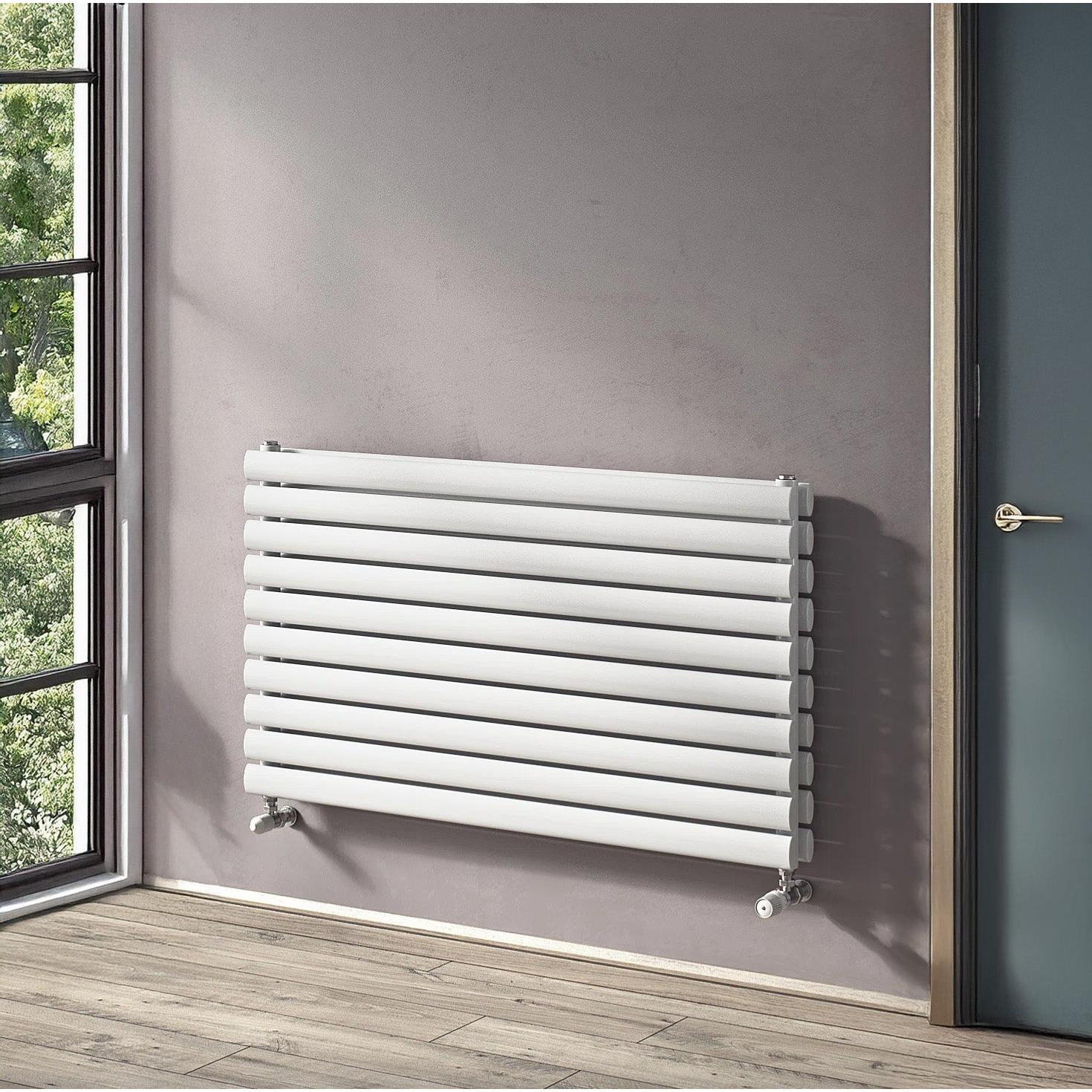

The Nevah Radiator showcases elegant oval horizontal tubes and is offered in both single and double models, providing flexible heating solutions for any room. Made from robust steel, it ensures excellent heat emission and is available in a remarkable array of colors. With a 5-year warranty, the Nevah blends modern design with dependability and efficiency, making it a fantastic addition to your home.
- Available in 2 colours and 8 sizes
- Durable Mild Steel Construction
- 5 Years Guarantee
Product Features
- Innovative designer radiator utilising horizontal oval-tubed sections
- Double panel format; sets of tubes mounted on the front and back of the radiator
- Strong and durable mild steel construction
- Supplied with wall brackets and fixings for wall-mounted installation
- Comes with 1/2" bottom connections
- Manufactured to BS/EN 442
- Radiator valves are sold separately - Reina recommends the Modal TRV
- The appropriate fuel type varies; please refer to the table below.
Technical Specification
| Size (Height x Width): | Pipe Centres | Wall to Pipe cent | Wall Distance | Tube Quantity | Fuel | Delta T60°C Btu | Delta T60°C watts |
| 295 x 1000mm | 955mm | 47mm | 88mm | 5 | C | 1,469 | 431 |
| 295 x 1200mm | 1155mm | 47mm | 88mm | 5 | C | 1,730 | 507 |
| 295 x 1400mm | 1355mm | 47mm | 88mm | 5 | C | 2,001 | 587 |
| 590 x 600mm | 555mm | 47mm | 88mm | 10 | C/E/D | 2,114 | 620 |
| 590 x 800mm | 755mm | 47mm | 88mm | 10 | C/E/D | 2,489 | 730 |
| 590 x 1000mm | 955mm | 47mm | 88mm | 10 | C/E/D | 2,933 | 860 |
| 590 x 1200mm | 1155mm | 47mm | 88mm | 10 | C/E/D | 3,456 | 1013 |
| 590 x 1400mm | 1355mm | 47mm | 88mm | 10 | C/E/D | 4,033 | 1183 |
| Size (Height x Width): | Pipe Centres | Wall to Pipe cent | Wall Distance | Double (Columns) | Fuel | Delta T60°C Btu | Delta T60°C watts |
| 295 x 1000mm | 955mm | 63mm | 103mm | 10 | C | 2,292 | 672 |
| 295 x 1200mm | 1155mm | 63mm | 103mm | 10 | C | 2,698 | 791 |
| 295 x 1400mm | 1355mm | 63mm | 103mm | 10 | C | 3,120 | 915 |
| 590 x 600mm | 555mm | 63mm | 103mm | 20 | C/E/D | 3,298 | 967 |
| 590 x 800mm | 755mm | 63mm | 103mm | 20 | C/E/D | 3,883 | 1139 |
| 590 x 1000mm | 955mm | 63mm | 103mm | 20 | C/E/D | 4,576 | 1342 |
| 590 x 1200mm | 1155mm | 63mm | 103mm | 20 | C | 5,391 | 1581 |
| 590 x 1400mm | 1355mm | 63mm | 103mm | 20 | C | 6,290 | 1845 |
* C : Central heating systems | D : Dual-fuel | E : Electric
