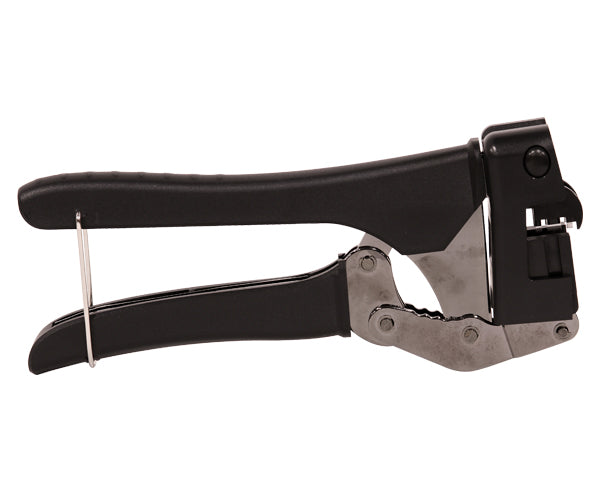

Punch-Down Tool for MIG+ 90° Keystone Jacks - K52 / K62 / K62A Component Rated High Density Jacks
This high quality punch down tool helps installers connect wires to our CAT5E and CAT6 MIG+ 90° Keystone Jacks with one simple squeeze of the handle. The easy to use punch down tool seats and trims all conductors in one easy motion, saving you time and money. Comfortable grip for extended use. This multi-function tool gives you accurate, consistent cuts and terminations. The cartridge slides on to the tool very easily.
Features
Features
- One Squeeze Punch-Down Tool
- Compatible with our MIG+ 90° Keystone Jacks
- Locking handle makes it more compact to store
- Sturdy, lightweight handle reduces hand-fatigue
- Reduces installation time - easy-to-use tool seats and cuts all wires at once
- Accurate, clean and consistent cuts and terminations - no more wasted jacks
- Built-In bed helps hold jack in place
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| MATERIAL SPECS | |
| Side Carriage | Polycarbonate, UL 94V-2 Black |
| Bracket Set | Polycarbonate, UL 94V-2 Black; MN 0.3mm thickness with 5-8um Nickel Plated, SUS420 |
| Housing | ABS+PC, UL 94V-2 Black |
| Push Button | Polycarbonate, UL 94V-2 Black |
| Left Hand Shank | Polycarbonate, UL 94V-2 Black; SPCC, 2.0mm thickness with 5-8um |
| Right Hand Shank | Polycarbonate, UL 94V-2 Black; SPCC, 2.0mm thickness with 5-8um |
| PERFORMANCE SPEC | |
| Operation Function | Works with MIG+ 90° Component Rated High Density Keystone Jacks |
| Operation Temperature | -20°C to +70°C |
| Storage Temperature | -20°C to +80°C |
Additional Information
What's In The Box
What's In The Box
- Qty 1 - Rapid Termination Punch Down Tool
- Qty 1 - Instructions
