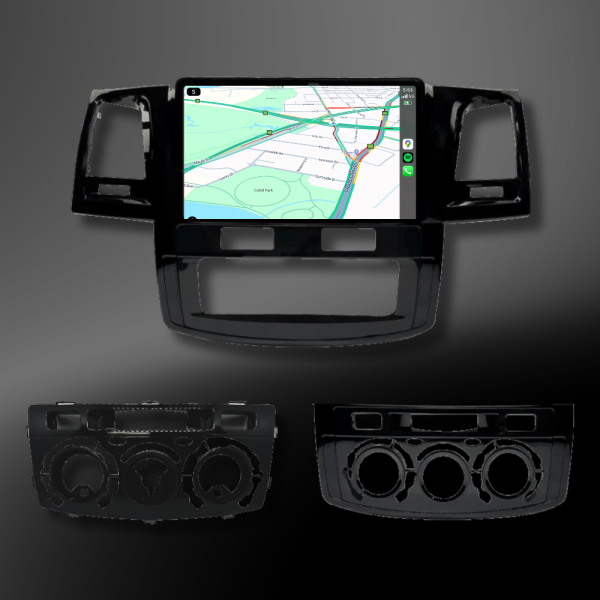

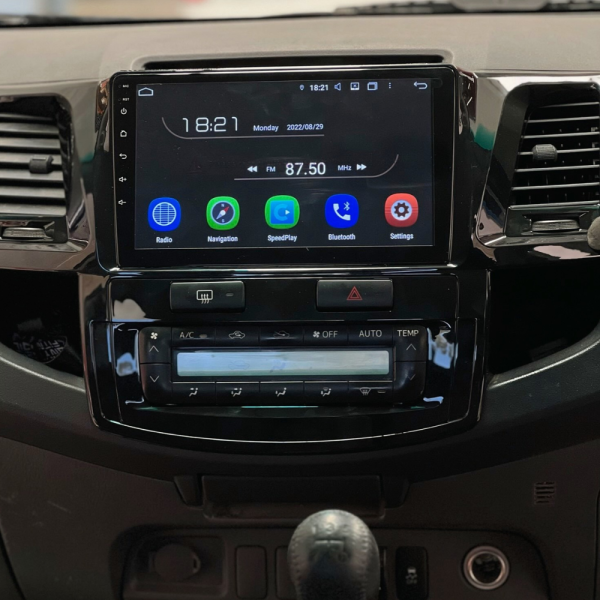

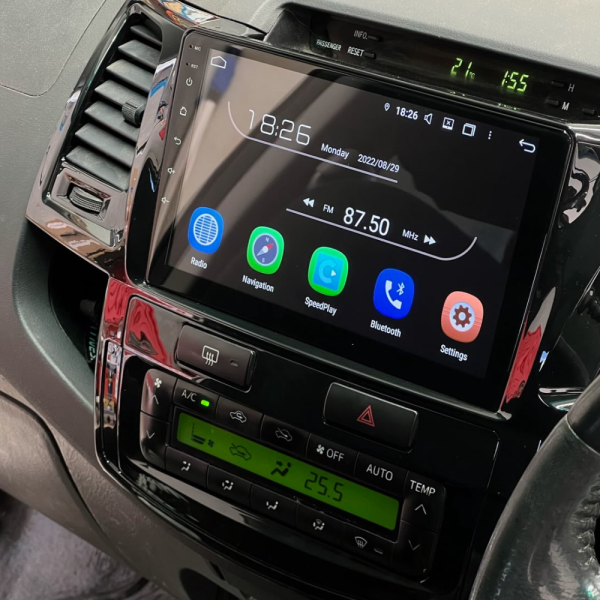

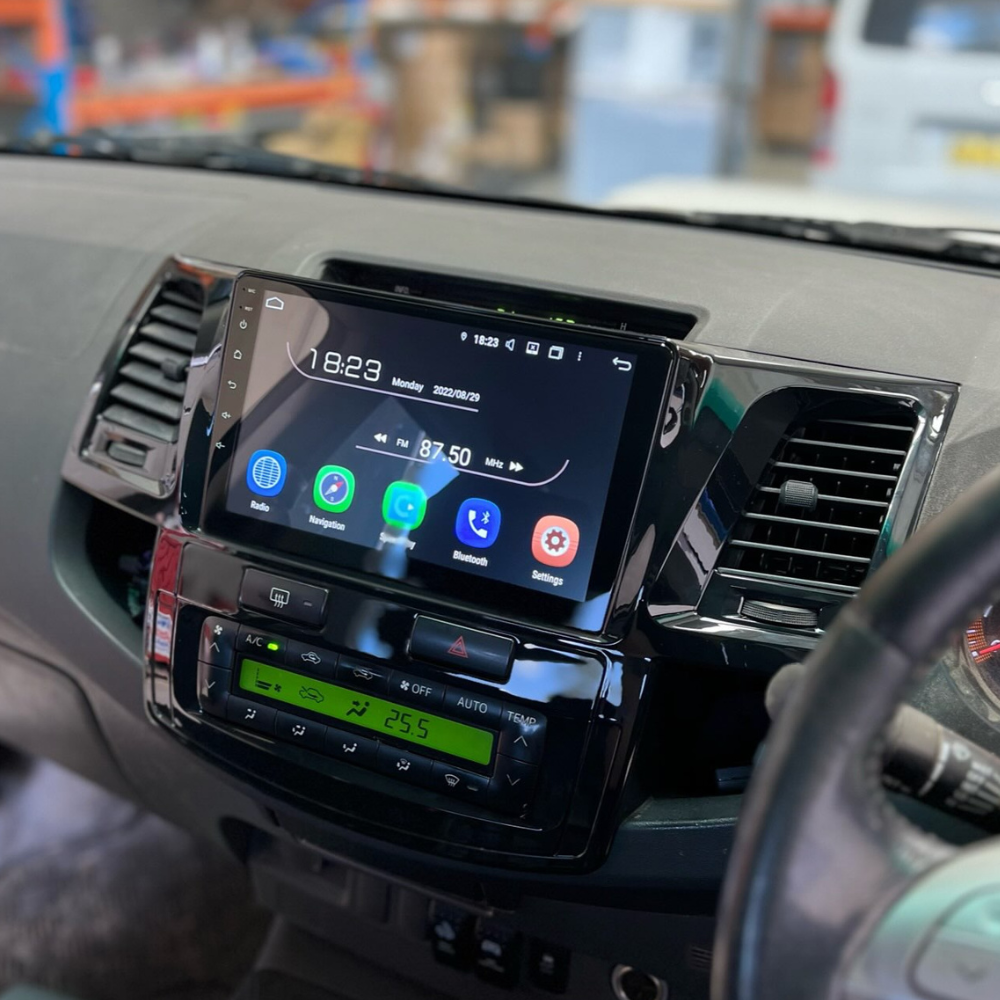

x9″ Android in-dash unit to Toyota Hilux N70 series 2006-2014
Includes Australia Wide Topo maps!
Description
Introducing the Enhanced N70Maxx: The Ultimate Upgrade for Your 2006-2014 Toyota Hilux. With a large 9″ touchscreen and integrated wireless Carplay and Android Auto, the N70Maxx offers a modern and seamless driving experience.

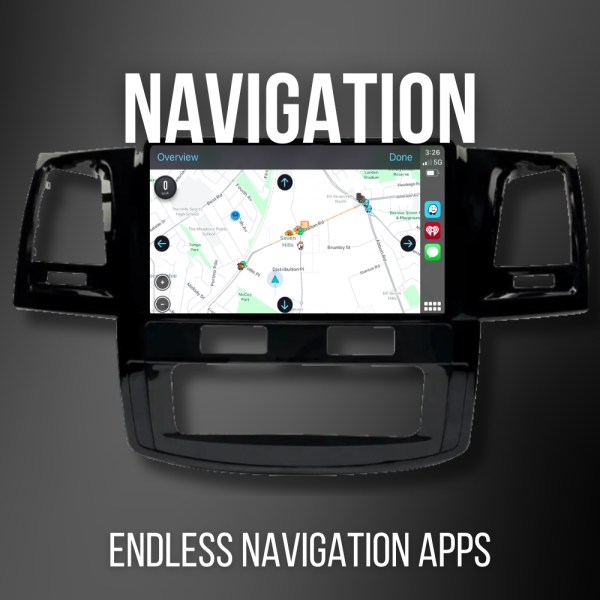

Effortlessly integrate your favourite navigation apps like Newtracs, Wikicamps, Memory Maps, ExplorOz, Sygic, and more directly into your head unit. Customise your navigation experience to perfectly match your unique needs.
Elevate your Toyota Hilux to new heights of personalisation and convenience with the N70Maxx. Experience the pinnacle of customisation and ease.

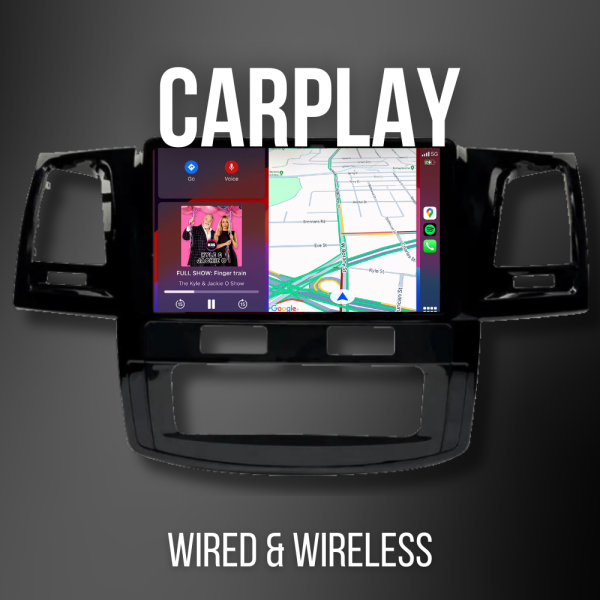

- Wireless Carplay

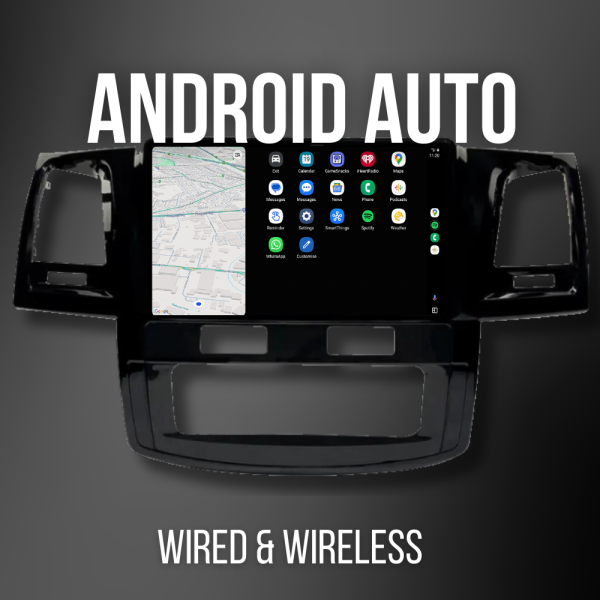

- Wireless Android Auto
- Includes various air conditioning panels to accommodate different N70 dash layouts
- AM/FM Radio
- 9-inch
- Wiring Harness included
- Android 11
- Bluetooth
- Free Reverse Camera
- Built-In Wifi

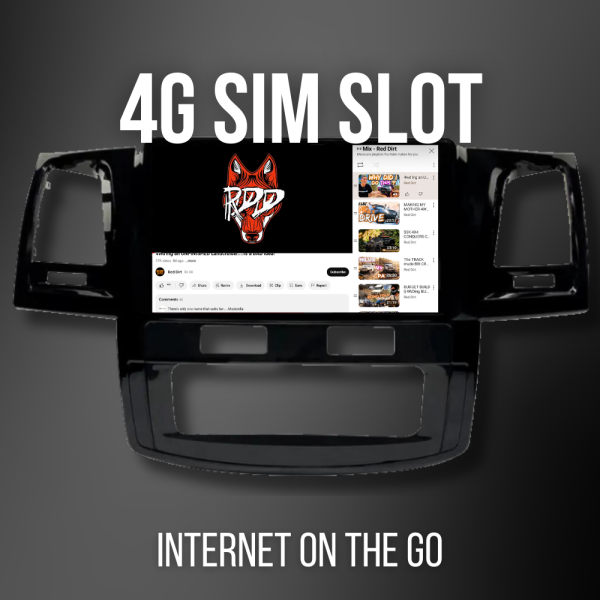

- 4G Sim Compatible

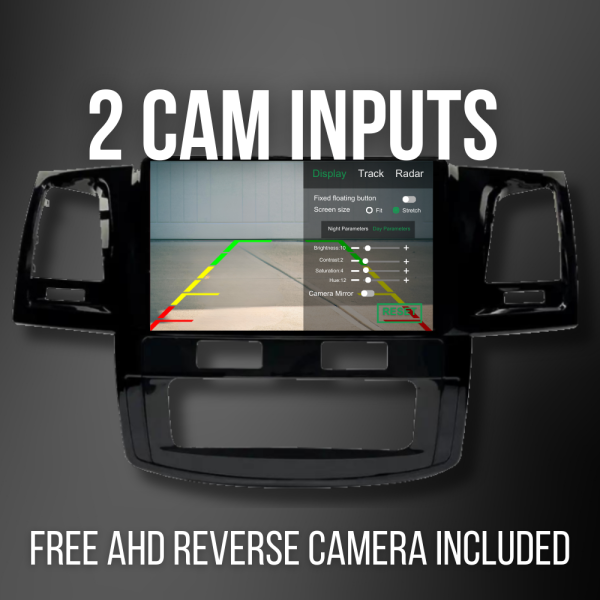

- Second Camera Input

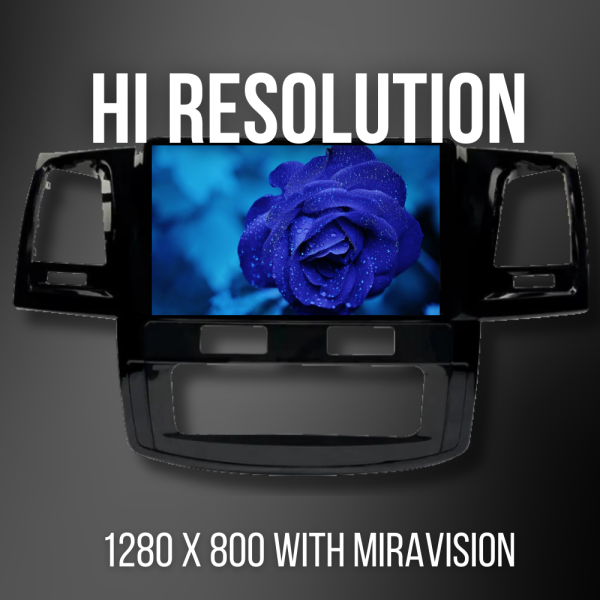

- High Definition Screen: 1280×800 with MiraVision

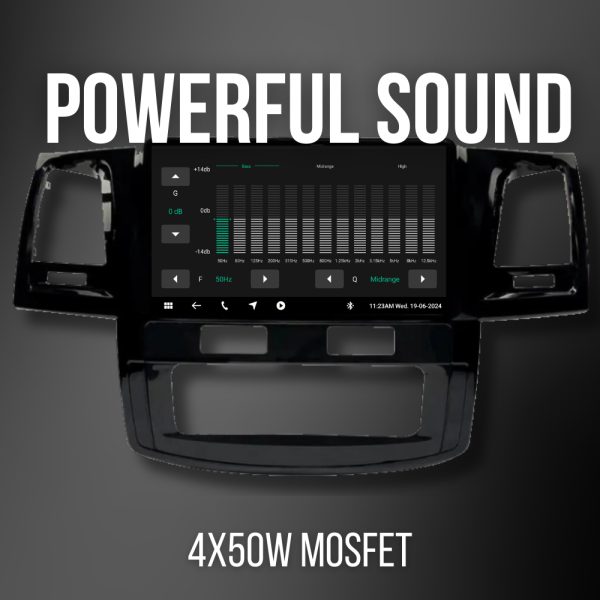

- High-Quality Audio: MOSFET Amplifier
- Download additional apps

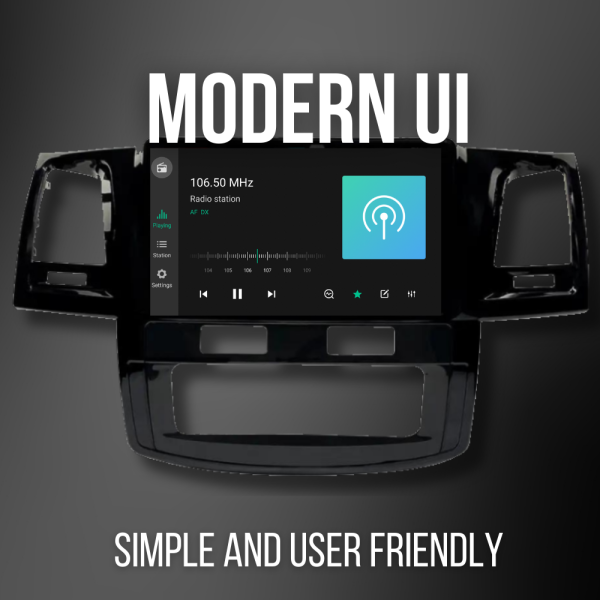

- Modern, User Friendly Interface
Compatible vehicles:

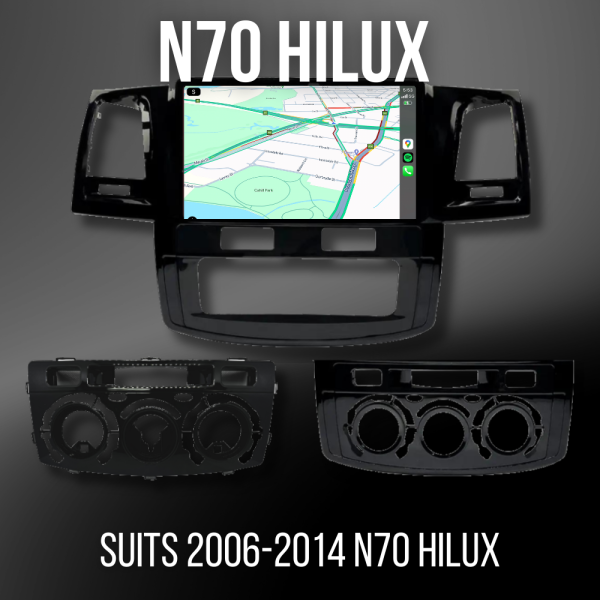

- 2006-2014 Toyota Hilux N70
Parts Included for all N70 Models
Includes various air conditioning panels to accommodate different N70 dash layouts
Bonus topo mapping:
- OziExplorer app
- 7 Australia wide topo maps, 1:150K, 1:300K, 1:600K, 1:1.2M, 1:2.4M, 1:4.8M 1:9.6M
- 26 Regional maps, including Adelaide, Cape York, Vic High Country, NE NSW, SE Qld, Red Centre, Top End, West Vic,
- 64GB mSD card or USB flash drive
Optional off-road mapping:
- Add Hema Maps
- Or download your own from Google Play Store
"We come to you" installation now available in the Sydney area - extra cost.
Options:
- to keep an eye on things +$75
- for vehicle diagnostic information +$50
Specifications
| System | Specifications |
| CPU | Cortex-A53 4CPU+4GPU, 2.0GHz |
| RAM+ROM | 6G+128G |
| O/S | Android 11 |
| PCB layer | 8 layers with 2 ranks |
| VIDEO | RMVB,MKV,MOV,WMV,AVI,MPG, TS with 1080P H.264 format |
| AUDIO | MP3,WMA,WAV,OGG,FLAC,APE |
| Steering Wheel control | Supports (if applicable) |
| Power off | Shut off the OS, <10mA |
| Working voltage | DC12V |
| Operating voltage range | 10.8V ~16V |
| Max current | 10A |
| Form Factor | In-Dash |
| Enclosure Type | 1 DIN |
| OSD Language | English, Russian, Arabic, German, Spanish, French, Thai, Italian, Chinese + more than 63 languages |
| Illumination control | Yes |
| Anti shock | Mechanical anti-shock & Electronic anti-shock |
| Features | Bluetooth 5.0, FM AM Radio with RDS, GPS External Antenna, 2.4GHz and 5GHz WIFI, Rear Camera Input(AHD and CVBS compatible), Aux In, video out(CVBS out), USB multimedia playback, DSP, Front camera support, MiraVision (best display quality), 4.2 RCA with 2 way subwoofer control |
| Display | |
| Touch Screen | Multi-touch |
| Display Mode | 16:09 |
| Screen Size | 9 inch |
| Touch Screen | Capacitive touch screen |
| Screen Resolution | 1280×800 |
| Display off | Yes |
| Carplay and Android Auto | |
| Wireless | Supports |
| Phone support | Carplay for iPhone, Android Auto for Android phone |
| Auto connect | Automatic connection after pairing the first time. |
| WIFI | |
| Dual band | 2.4G and 5GHz |
| Security | WFA WPA/WPA2 Personal. AES-CCMP, WPI-SMS4, GCMP, WPS2.0, WAPI |
| Frequency | 2412MHz~2472MHz(802.11b/802.11g/802.11n(HT20)) 2422MHz~2462MHz(802.11n(HT40)) |
| GPS | |
| Map support | Supports many different mapping applications |
| Frequency | GPS L1: 1559MHz~1610MHz |
| Radio | |
| Radio IC | SI47901 |
| Radio Tuner | FM/AM RDS |
| Support RDS | Yes |
| Frequency | FM: 87.5~108 MHz, AM: 522~1620 KHz |
| Amplifier | |
| Built-in Amplifier | MOSFET |
| Amplifier output power/channel qty. | 50Wx4 |
| RCA Pre-outs | 3 pair, 4V (Front/Rear/Subwoofer) |
| EQ mode | Flat, Powerful,Vocal, Natural, Insane, Unlimited Preset EQ Styles |
| Customisable Graphic Equaliser | 13-Band GEQ |
| D/A Converter | 24-Bit |
| Crossover Network | LPF/HPF |
| Time Alignment | Yes |
| Loudness | Yes |
| Subwoofer Control | Yes |
| LPF and HPF adjust | Yes |
| Bluetooth | |
| Version | BT5.0 dual connection, support A2DP(Bluetooth Stereo Music) |
| Built-in Microphone | Yes |
| External Microphone | Yes |
| Received Call | Yes |
| Dialled Call | Yes |
| Missed Call | Yes |
| Phone Book download | Yes |
| Frequency | 2402~2480MHz |
| Rear Camera Input | |
| Reversing mode | The screen automatically displays rear camera video when reversing whether the power is off or on. |
| Rear Camera | Yes, included, AHD Miniature Camera with butterfly and number plate bracket included |
| SD/USB | |
| Playback mode | Automatic play multimedia when the device is connected unit |
| SD map card slot | Yes – located in the rear of head unit |
| USB port | 2 |
| Interface | |
| Video Input | 3 Channel, One for front camera(CVBS/AHD) one for rear camera(CVBS/AHD),one for aux in(CVBS) |
| Video Output | 2 Channel(CVBS out) |
| Audio Input | 2 Channel for aux in |
| Audio Output | 4.2 Channel (FL/FR/RL/RR/SUB-L/SUB-R) |
| USB Port | Yes, 2 Rear USB port |
| General | |
| Colour | Black |
| Operation Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
