Legend P-2006NL No Lead DZR Brass Press x PEX Ball Valve (Full Port)

High Demand Item – Frequently Reordered by Contractors

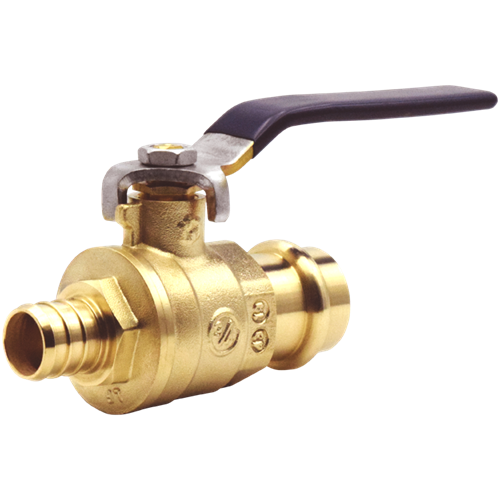

The Legend P-2006NL is a no lead, dezincification-resistant (DZR) forged brass ball valve with a press connection on one end and an F1807 PEX barb on the other. Designed for hybrid installations where copper press piping transitions to PEX — one valve handles both connections without adapters. The press end installs onto ASTM B88 Types K, L, and M copper using commercially available VUS profile press jaws. The PEX barb end is compatible with F1807 copper crimp rings and stainless steel clamps, and is designed for use with PEX (ASTM F876 & F877) and PE-RT (ASTM F2769) tubing.

The DZR forged brass body resists dezincification in aggressive water conditions — a common failure point for standard brass valves in high-chloride or low-pH water systems. The bottom-loaded, blowout-proof stem features dual-seal PTFE packing and a stem seat design for positive sealing under a wide range of conditions. Rated at 250 PSI CWP at 250°F. Not suitable for steam service.

Applications

• Press-to-PEX transitions — copper press piping to PEX distribution
• Potable water systems — residential and commercial
• Mechanical room builds with mixed press and PEX systems
• Retrofit work transitioning from copper to PEX
• Any install requiring a shutoff at the press-to-PEX connection point

Key Features

• No lead DZR forged brass body — dezincification resistant, potable water compliant
• Press x F1807 PEX — one valve handles both connection types
• Blowout-proof, bottom-loaded stem — dual-seal PTFE packing
• PEX barb compatible with F1807 copper crimp rings and stainless clamps
• Press end compatible with VUS profile press jaws
• Rated 250 PSI CWP @ 250°F
• Third-party certified — NSF/ANSI 14 & 61
• Available 1/2" through 2"

Specifications

Material Specifications

Dimensions

Best Used For

• Press-to-PEX transition shutoffs on potable water systems
• Residential and commercial plumbing rough-in
• Mechanical room builds with mixed press and PEX piping
• Retrofit work where copper transitions to PEX distribution
• Any job where a single valve needs to handle both connection types

Frequently Asked Questions

What PEX tubing types is this compatible with?

The PEX barb end is designed for use with PEX (ASTM F876 & F877) and PE-RT (ASTM F2769) tubing. PEX barbs comply with F1807 copper crimp rings and stainless steel clamps.

What press tools work with the P-2006NL?

The press end is compatible with commercially available VUS profile press jaws, including Milwaukee M12/M18 and RIDGID press systems.

What copper tubing types does the press end fit?

The press-to-connect end is designed for ASTM B88 Types K, L, and M hard-drawn copper tubing.

Is this valve rated for steam?

No. The P-2006NL is not suitable for steam service. The temperature and pressure rating of the PEX and PE-RT tubing governs the system limits.

Is this no lead compliant?

Yes. The P-2006NL is constructed from no lead DZR forged brass and is third-party certified to NSF/ANSI 14 and NSF/ANSI 61 for drinking water system components.

What sizes are available?

1/2", 3/4", 1", 1-1/4", 1-1/2", and 2" — all available from the size selector above.

Why Contractors Choose This Product

• One valve handles press and PEX — no adapter fittings at the transition point
• DZR brass resists dezincification — outlasts standard brass in aggressive water conditions
• No lead, NSF-certified — correct for potable water, no compliance questions
• Blowout-proof stem — reliable long-term in production systems
• 250 PSI CWP — rated for full residential and commercial system pressure

Submittal Sheet

Download the official Legend P-2006NL submittal sheet for full specifications, material data, and dimensions.
