Description
xProduct overview
- For the iFuge UC02R refrigerated centrifuge
- Enables universal use
- Easy to change
- Available in different variants
- 1 rotor

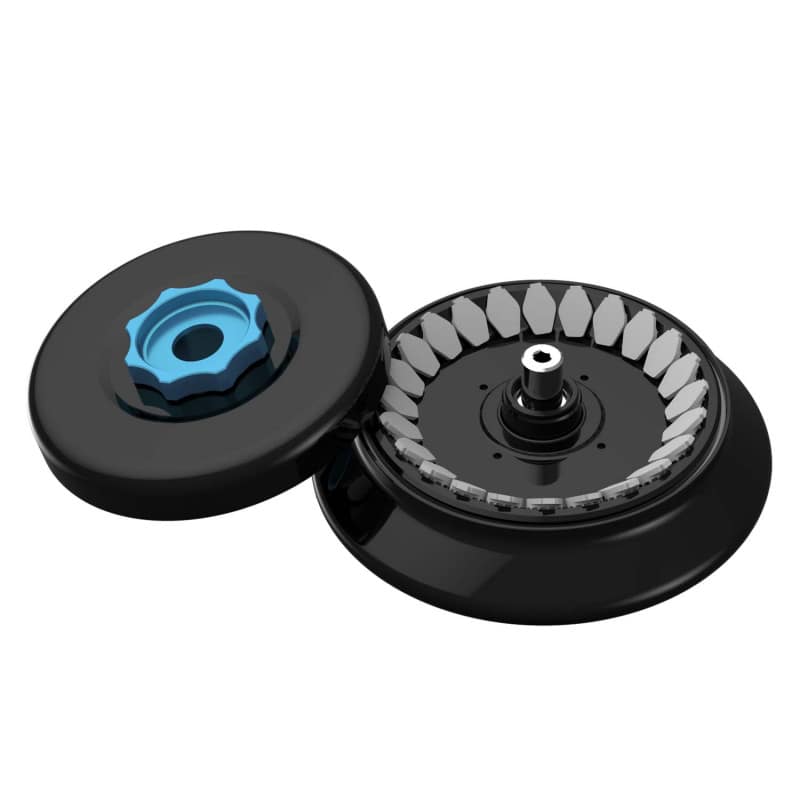

iFuge UC02R Rotor
The iFuge UC02R rotor from Neuation is compatible with the iFuge UC02R refrigerated centrifuge and enables flexible use. Thanks to the automatic rotor detection integrated in the centrifuge, the device optimally adapts the speed to the rotor used. The rotor is optionally available as a fixed-angle or swing-out variant with different capacities.
Product Details
- iFuge UC02R Rotor from Neuation
- For the iFuge UC02R refrigerated centrifuge
- Allows universal use
- Automatic rotor detection for automatic speed adjustment
- Easy to change
- Available in different variants
- Depending on the variant, including matching rotor lid
- 1 rotor
Ordering Information
| Capacity | Max. RPM | G Force |
| 24 x 2 ml (Fixed Angle Rotor) | 15000 rpm | 21420 g |
| 4 x 8 PCR Tubes (Fixed Angle Rotor) | 15000 rpm | 15397 g |
| 8 x 5 ml (Fixed Angle Rotor) | 15000 rpm | 18461 g |
| 44 x 2 ml (Fixed Angle Rotor) | 15000 rpm | 22388 g |
| 4 x 100 ml (Fixed Angle Rotor) | 6000 rpm | 4628 g |
| 4 x 50 ml (Fixed Angle Rotor) | 6000 rpm | 4750 g |
| 6 x 50 ml (Fixed Angle Rotor) | 6000 rpm | 4910 g |
| 16 x 15 ml (Fixed Angle Rotor) | 6000 rpm | 4910 g |
| 24 x 15 ml (Fixed Angle Rotor) | 6000 rpm | 5070 g |
| 4 x 100 ml (Swing Out Rotor) | 4500 rpm | 3164 g |
| 4 x 50 ml (Swing Out Rotor) | 4500 rpm | 3485 g |
| 16 x 15 ml (Swing Out Rotor) | 4500 rpm | 3485 g |
| 32 x 10 ml (Swing Out Rotor) | 4500 rpm | 3164 g |
| 2 x Microplates (Swing Out Rotor) | 4500 rpm | 2377 g |
