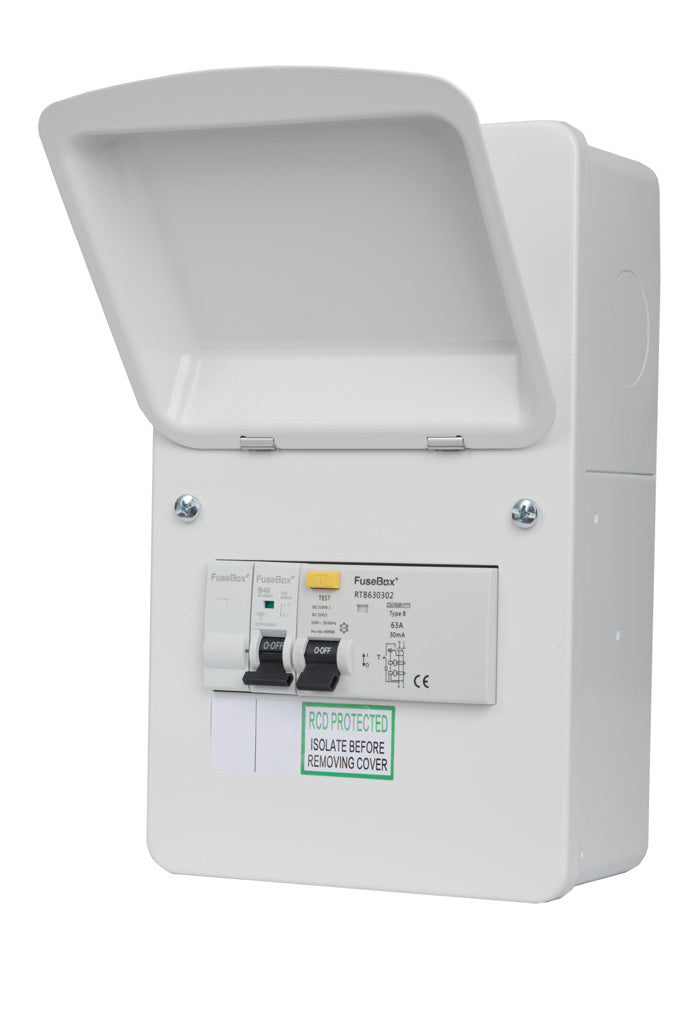

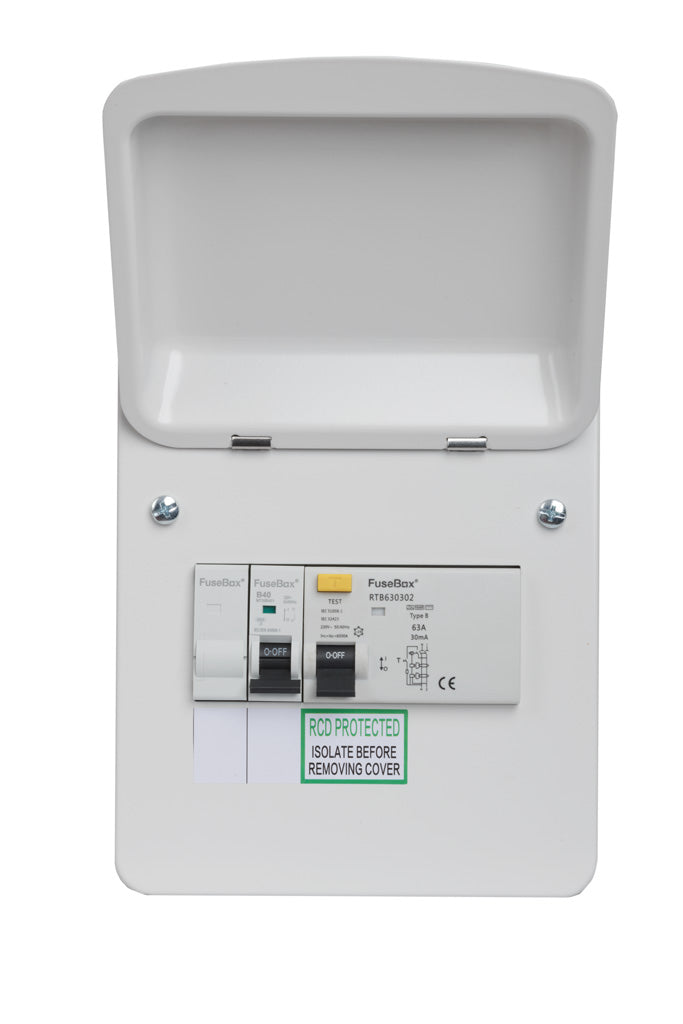

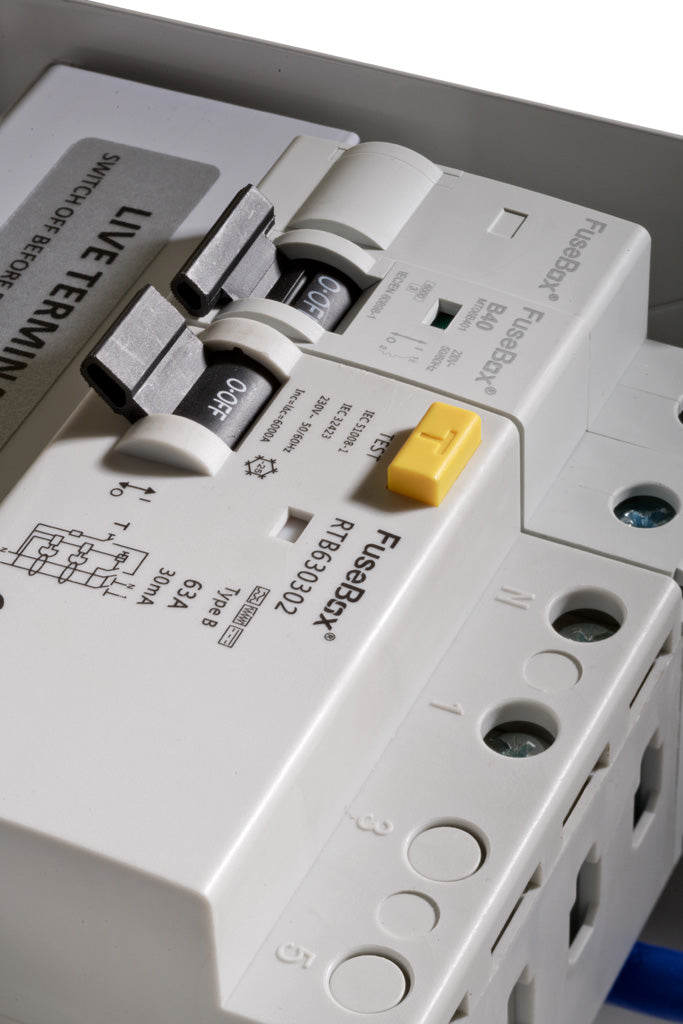

Fusebox EV40B 40A Type B (RCD) EV Charger Distribution Boards
Fusebox EV40B 40A Type B (RCD) EV Charger Distribution Boards
Fusebox EV40B 40A Type B (RCD) EV Charger Distribution Boards

Fusebox EV40B 40A Type B (RCD) EV Charger Distribution Boards

$135.50
$135.50
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $135.50

Free Shipping

Free standard shipping on orders over $60

Size Guide

Understanding Mylulusstore Sizing
Fusebox EV40B 40A Type B (RCD) EV Charger Distribution Boards

Fusebox EV40B 40A Type B (RCD) EV Charger Distribution Boards

$135.50
Fusebox EV40B 40A Type B (RCD) EV Charger Distribution Boards
Fusebox EV40B 40A Type B (RCD) EV Charger Distribution Boards
Fusebox EV40B 40A Type B (RCD) EV Charger Distribution Boards

Fusebox EV40B 40A Type B (RCD) EV Charger Distribution Boards

$135.50
Description
Description
x


Product Details



See alternative products available


STANDARD  EN 61439-3
RATED VOLTAGE (Un/AC) 230V
FREQUENCY (Hz) 50/60
PROTECTION DEGREE (IP) 2XC
MAXIMUM TERMINAL BAR CAPACITY 16mm ²
TERMINAL BAR TIGHTENING TORQUE (Nm) 2
MOUNTING 35mm DIN RAIL
MATERIAL 1mm ELECTRO GALVANISED STEEL (ZINC)
FINISH RAL 9001 POWDER COATED SMOOTH FINISH
ACCESSORY PACK (4E) CIRCUIT IDENTIFICATION LABELS
ACCESSORY PACK (6P) CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP
RATING (A) 40A
RATED RESIDUAL OPERATING CURRENT (IΔn) 30mA
RCBO /RCD TYPE TYPE B (RCD)
MCB RATING/ Tripping Curve 40A B CURVE
NUMBER OF POLES 2
T2 SPD N
DIMENSION DRAWING 6P
WEIGHT (1PC) Kg 3
DIMENSIONS (HxWxD)mm 259x162x113
DC MAX 10mA
