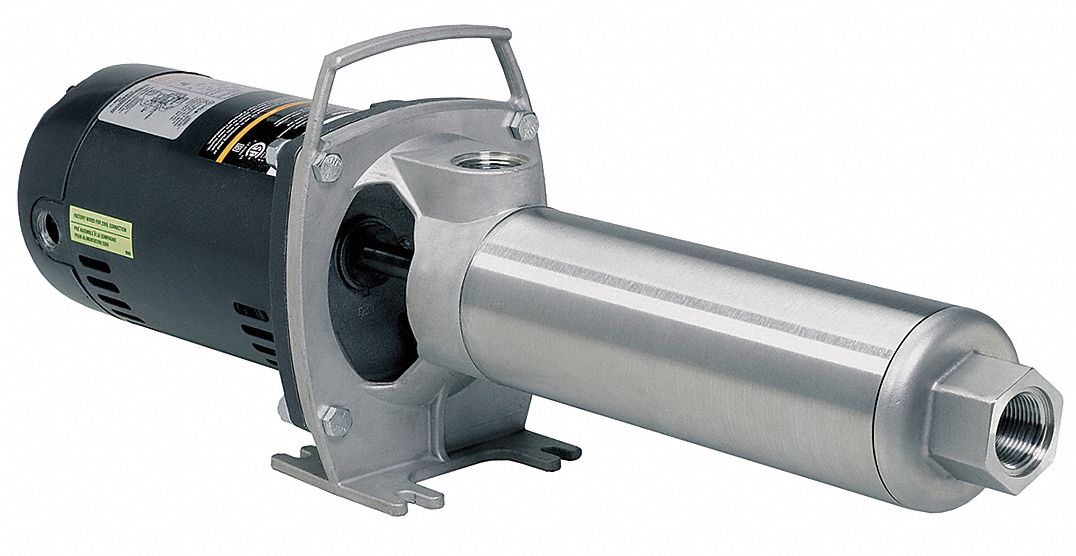

Franklin 115/230V AC Open Dripproof Multi-Stage Booster Pump, 6-Stage, 1 in NPT Inlet Size - 25FBT1C4

Multi-Stage Booster Pump; Booster Pump Type: Multi-Stage Booster Pump; HP - Pumps: 1 hp; Voltage - Pumps: 115/230V AC; Phase - Pumps: 1; Outlet Size - Pumps: 1 in NPT; Inlet Size - Pumps: 1 in NPT; Max. Pressure - Pumps: 94 psi; Number of Stages - Pumps: 6; Housing Material - Pumps: Cast Iron; Motor Enclosure - Pumps: Open Dripproof; Pump Mounting Position: Horizontal; Amps: 14.2/7.1; Impeller Material: Celcon(R); Impeller Type: Closed; Max. Case Pressure: 375 psi; Max. Liquid Temp.: 120 Degrees F; Seal Material: Phen/Ceramic, Buna, Stainless Steel; Wetted Materials: Cast Iron, Carbon, Ceramic, Buna, Stainless Steel, Engineered Composite; Motor Type: Capacitor-Start; Agency Compliance: cCSAus; Manufacturers Warranty Length: 1 yr; Includes: Manual; Length: 26 31/32 in; Width: 6 1/2 in; Height: 9 3/64 in; Bearing Type: Ball; Duty: Continuous; Hz: 60; Motor Ambient Temp. Rating: 40 Degrees C; Suction Lift: 10 ft; Max. PSI Boost @ 20 GPM: 77; Max. PSI Boost @ 2-10 GPM: 94 psi @ 10 gpm; Max. PSI Boost @ 30 GPM: 48; GPM @ 50 PSI: 30; Best Efficiency GPM @ PSI: 25 @ 65; Frame: 48Y; Motor RPM: 3,450 RPM
