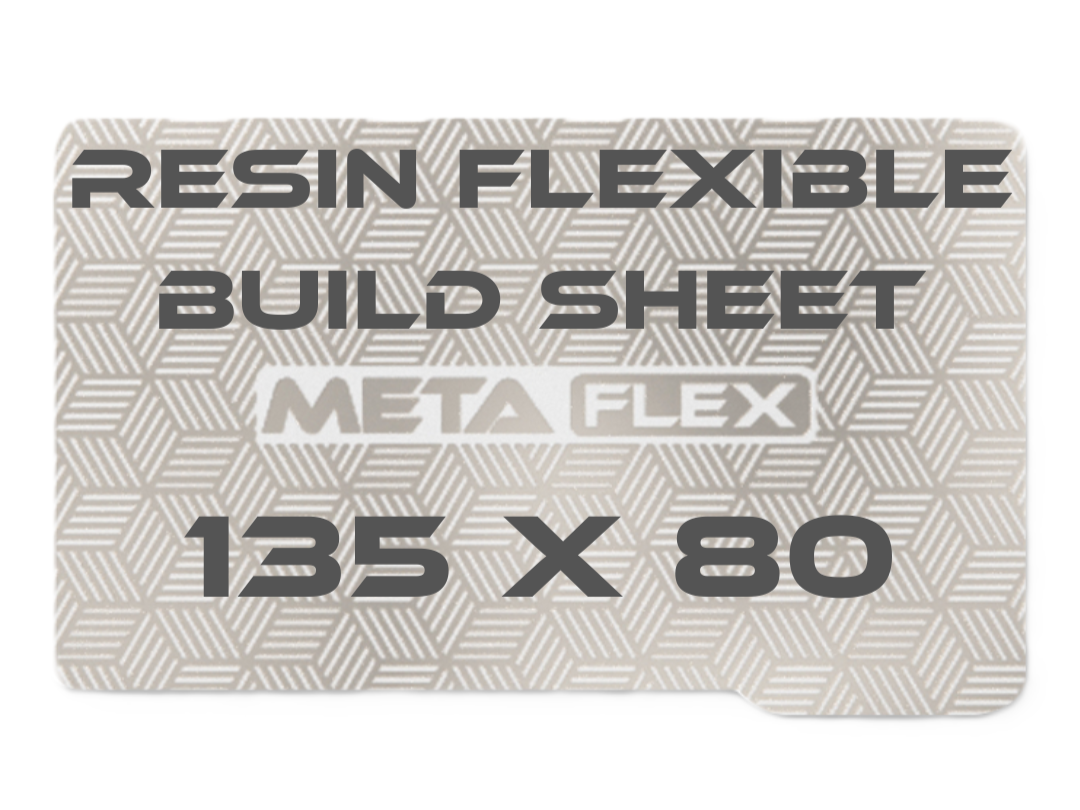

Flexible Resin Build Plate - 135mm x 80mm w/ Magnetic Base

Flexible Resin Build Plate - 135mm x 80mm

Suitable Models: Anycubic Photon/ S / Mono / Mono SE / Mono Ultra, Qidi Shadow 5.5S

METAFLEX's range of flexible steel build plates are the resin printer upgrade you wish you'd always had.

Built for optimal print adhesion and effortless removal, METAFLEX's range of flexible steel build plates come laser engraved with our METAFLEX logo and checker plate pattern to assist with print adhesion, no need to rough up the plate with steel wool. All METAFLEX build plates come standard with a quality 3M backed, thick magnetic plate for strong connection between magnet and build plate. Pull tab on the build sheets make removing from the magnet easy and with a flex of the sheet you'll see your print effortlessly release, meaning you can start that next print straight away.

Key Features:

• Laser Engraved Surface - Designed for optimal print adhesion, no need to rough up surface with steel wool.
• Flexible Plate - For effortless removal of prints and quicker turnaround times between prints.
• Strong Magnet - For strong connection with flexible build sheet, no concerns about build sheet moving or releasing during print.


How to Measure Your Build Plate

Step 1: Simply measure the length and width of the build plate on your resin 3D printer.

Step 2: Cross check the measurement against our METAFLEX flexible resin build plate range before purchase.

Your printers build plate will almost always be larger that it's print volume, make sure you measure the full length and width of your build plate before selection. Alternatively use the METAFLEX compatibility chart to find your model. If your model is not listed, please let us know the model and size and we will add it to our list. Any issues finding the right size or measuring your build plate please get in contact with us.

Compatibility Chart

Installation & Maintenance

Installation:

1. Clean Build Plate - Before installing magnetic base, thoroughly clean your build plate with IPA (Isopropyl alcohol) and a microfiber cloth to remove any dust, grease, or debris.
2. Applying Magnetic Base - Peel backing paper 5cms from back edge of magnet, align both back corners of magnet with the back corners of your build plate. Once aligned push down on magnet to stick the exposed back surface. Slowly begin peeling the rest of the backing paper while pushing down and smoothing out the magnet so it sticks to the build plate with minimal air bubbles. Continue this process until backing paper is fully removed and magnet is fully applied to the surface.
3. Remove Air Bubbles – To ensure surface is as flat as possible use a plastic card to push air bubbles to the edge of the magnet. Any large air bubbles that can’t be pushed out can be popped with a pin. Considerable force is required to penetrate through the magnets surface, once popped use card to smoothen out bubbled area.
4. Cleaning METAFLEX Plate - Before installing your METAFLEX plate you will need to clean both sides with IPA (Isopropyl alcohol) and a microfiber cloth to remove any grease or residue that might have remained following the manufacturing process.
5. Installing METAFLEX Plate – Now that the magnetic base is installed you can fit your METAFLEX Plate. Simply line up the back edge of the sheet with the back edge of the magnetic base, slowly drop the sheet into place. The magnetic pull from the base will also help pull the sheet down into place.
6. Levelling and Print Removal – Installation is now complete, before printing you’ll need to level your bed as per normal and adjusting accordingly. To remove model from your METAFLEX Plate, allow some time for plate to cool so you don’t burn your fingers. Using the tabs at the front, pull the METAFLEX plate up and away from the magnetic base. Then holding opposite sides of the plate, flex up and down until model releases. For bigger models you may need to rotate sheet and flex from all 4 sides.

Maintenance:

Using IPA (Isopropyl alcohol) and a microfiber cloth, we recommend cleaning your METAFLEX plate in between each print to remove any dust, grease, or debris that may cause adhesion issues while printing.

We also recommend regular cleaning of your magnetic base with IPA (Isopropyl alcohol) and a microfiber cloth.
