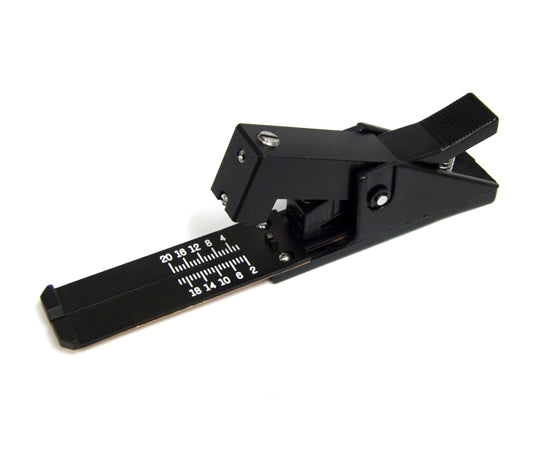

Fiber Cleaver
The Fiber Cleaver is a single fiber cleaver designed to accommodate either 900µm buffered or 250µm coated fiber. The cleaver's quick and easy three-step operation is well suited for mechanical splice and quick termination field connector applications. The leaf spring base is ruled to allow for cleave lengths of 2 to 20mm. The standard carbide blade will perform up to 6,000 cleaves before replacement.
Features
Features
- Fast Splicing for Emergency Restorations
- Self Gripping Clamshell Design
- Adhesive Option for Added Pull Strength
- For 125µm Clad Fiber
- Singlemode and Multimode
- Affordable
Specifications
| Specifications | ||
|---|---|---|
| Fiber Type | Silica glass fiber (core and clad) | |
| Compatible Fiber Size | 900µm Buffer or 250µm Coated | |
| Cladding Diameter | 80µm to 200µm | |
| Dimensions | 125mm x 20mm x 42mm | |
| Weight | 70g | |
| Cleave Length | 2mm-20mm | |
What’s In The Box
What’s In The Box
- Qty 1 - Fiber Cleaver, Ceramic Blade, Cleave Lengths 2mm-20mm
