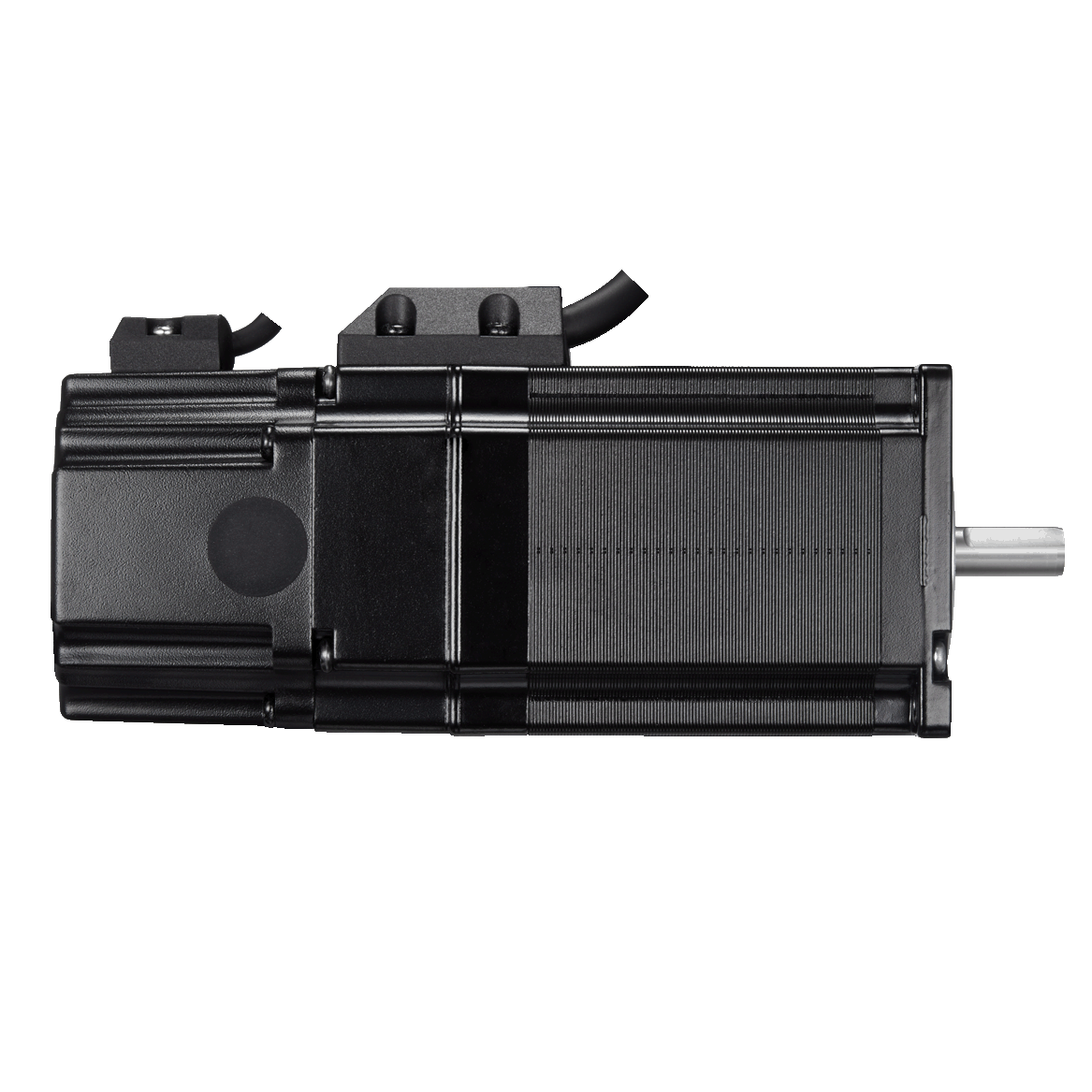

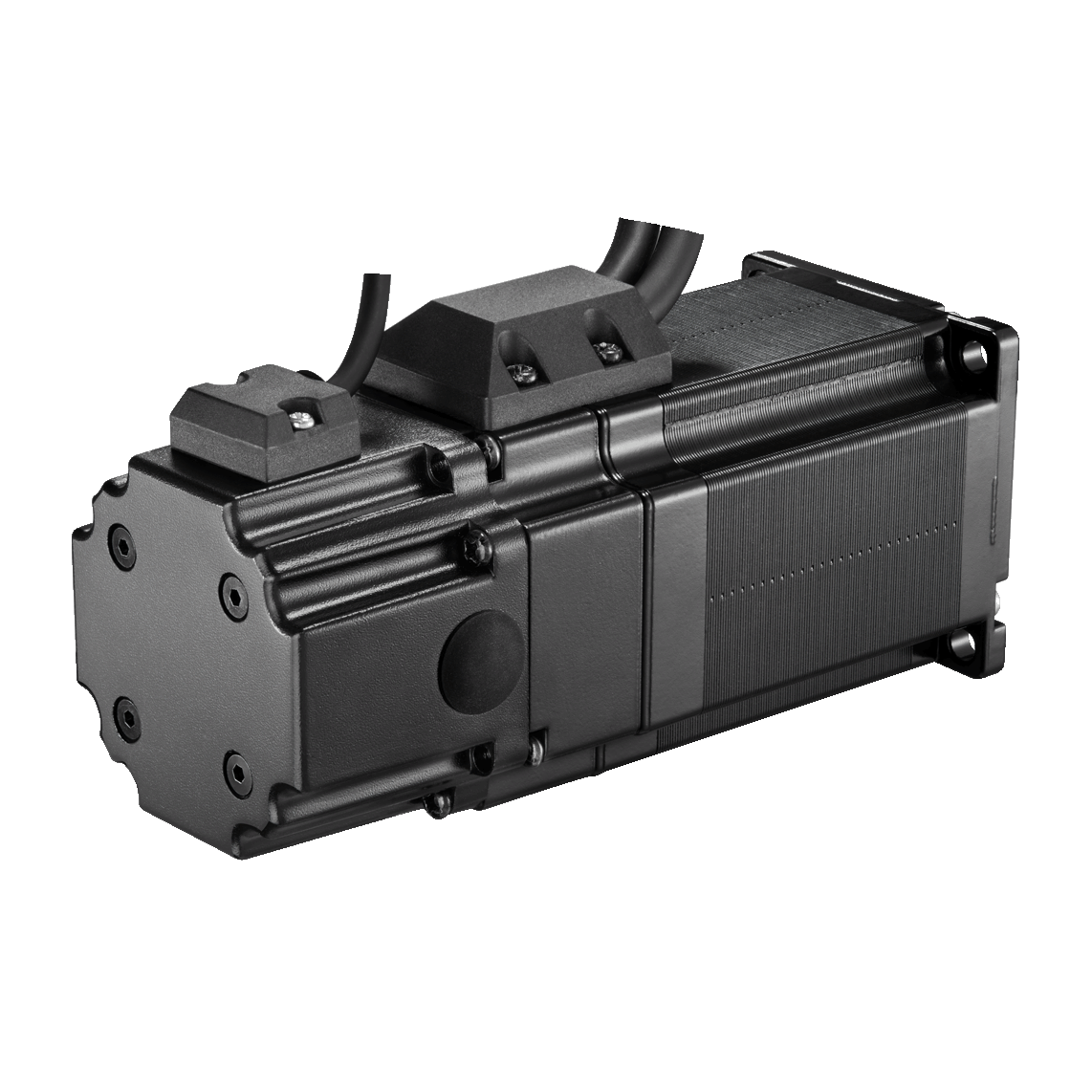

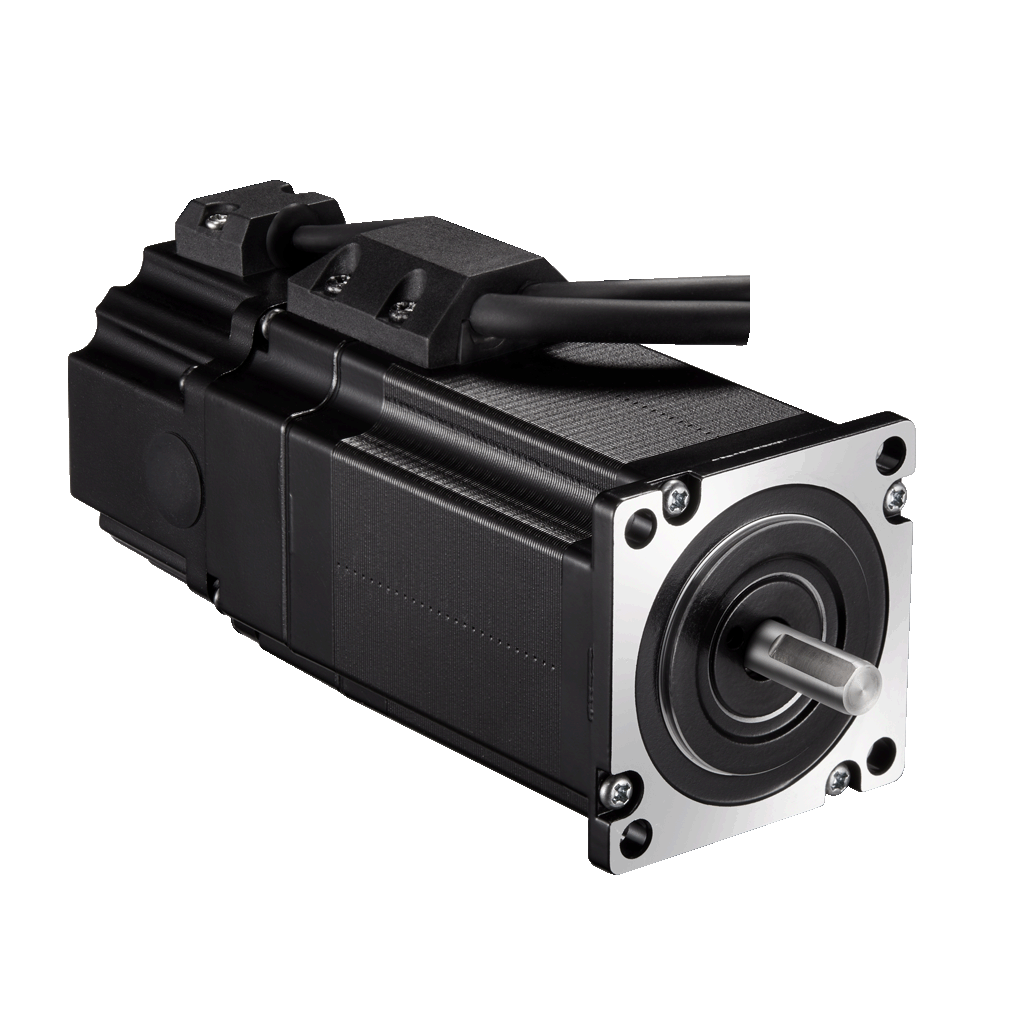

CS-M Series-Closed Loop Stepper Motor-CS-M22323B

Leadshine Authorized Distributor and Service Center in India is MAS Auto Systems Pvt Ltd, Mumbai. Call 9892203008.

Features of Leadshine CS-M Series-Closed Loop Stepper Motor-CS-M22323B:

• 2 phase, NEMA 23 frame size
• 131 mm (5.16 inch) long
• 5 A phase current
• 2.3 N.m (326 oz-in) holding torque
• 8 mm (0.315 inch) shaft size
• Permanent magnet brakes
• High precision, low motor heating, and low noise
• Integrated 1,000 line (4,000 count/revolution) quadrature rotary encoder

Description of Leadshine CS-M Series-Closed Loop Stepper Motor-CS-M22323B:

The CS-M series closed loop stepper motors are integrated with a 1,000 line (4,000 counts/revolution) or 5,000 line （20,000 counts/revolution） differential ended rotary encoder. Build with high quality materials including bearings and shaft made by famous manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration.

Technical Data for Leadshine CS-M Series-Closed Loop Stepper Motor-CS-M22323B:

Phase   2 phase | Frame Size (NEMA) 23  | Length (mm) 137 | Holding Torque (N.m) 2.1 | Phase Current (A) 5.0 | Shaft Diameter (mm) 8.0 | Center Diameter (mm) 38.1 | IP Rate IP40 | Characteristics Brake | Resistance (Ohm) 0.4 | Inductance (mH) 1.7 | Inertia (kg/cm2) 0.5 | Weight（kg）1.65
