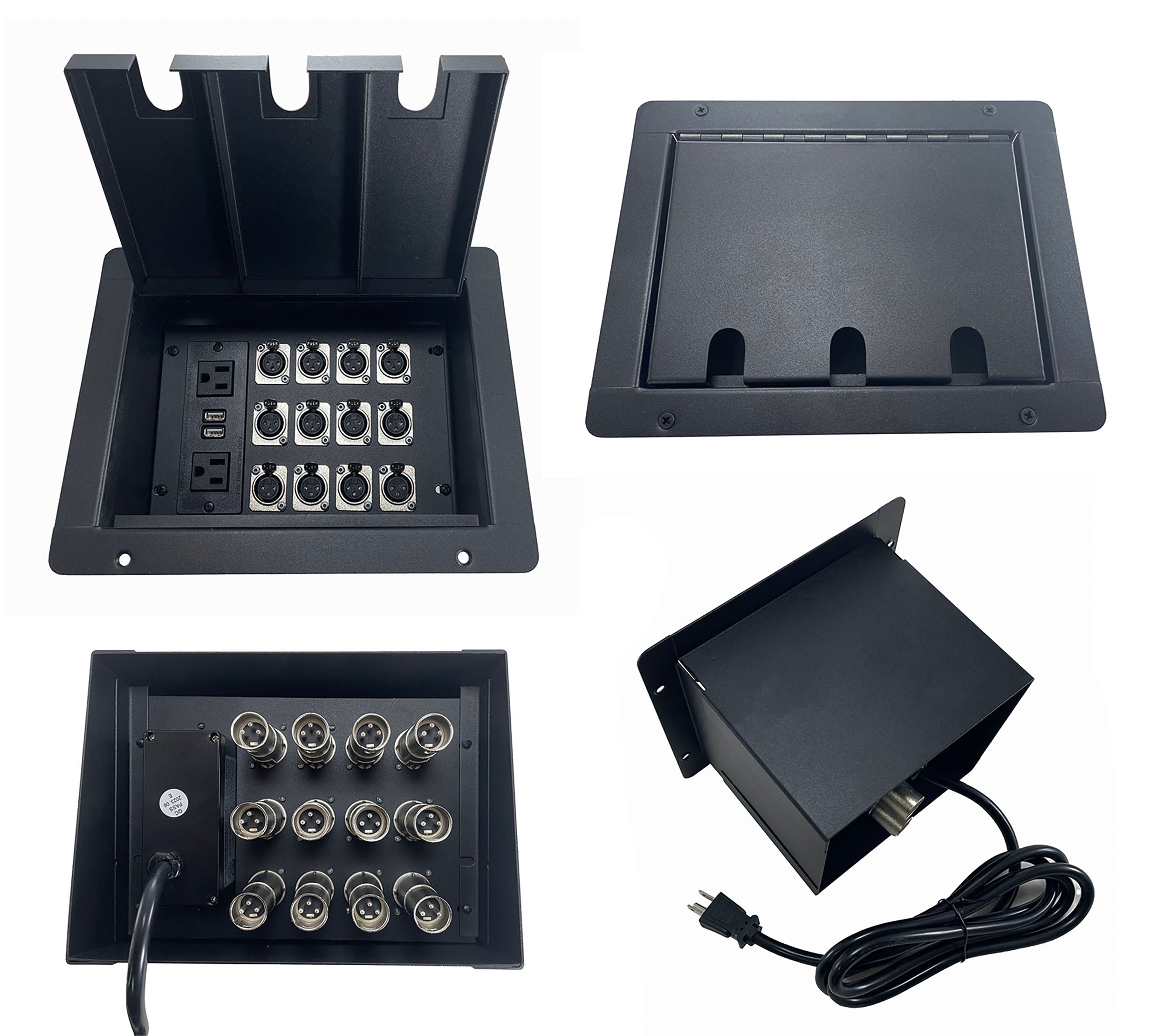

PROCRAFT LARGE 3 HOLE LID FEED-THRU RECESSED Stage Pocket/Floor Box w/ 1) WIRED AC 12) XF

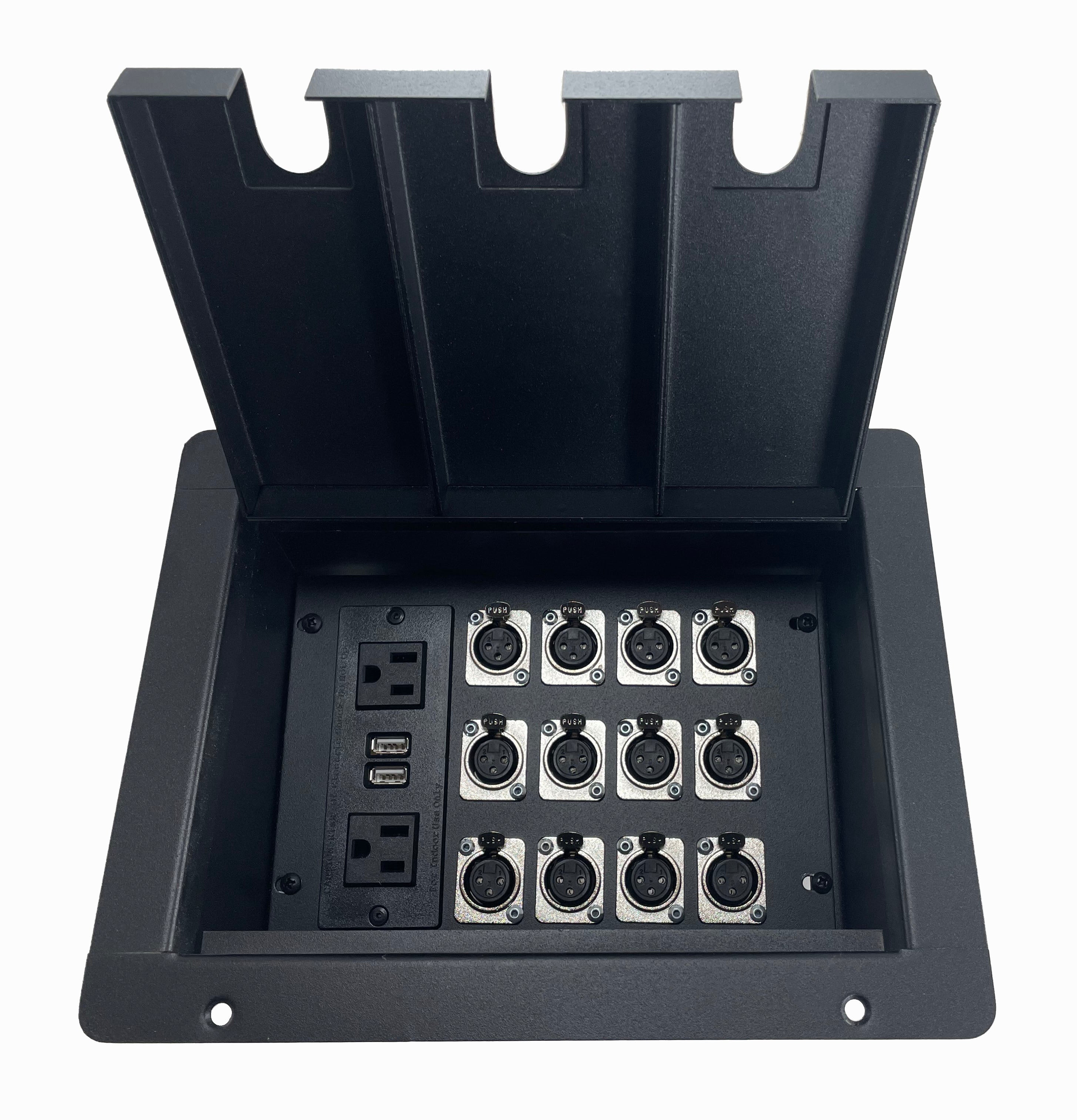

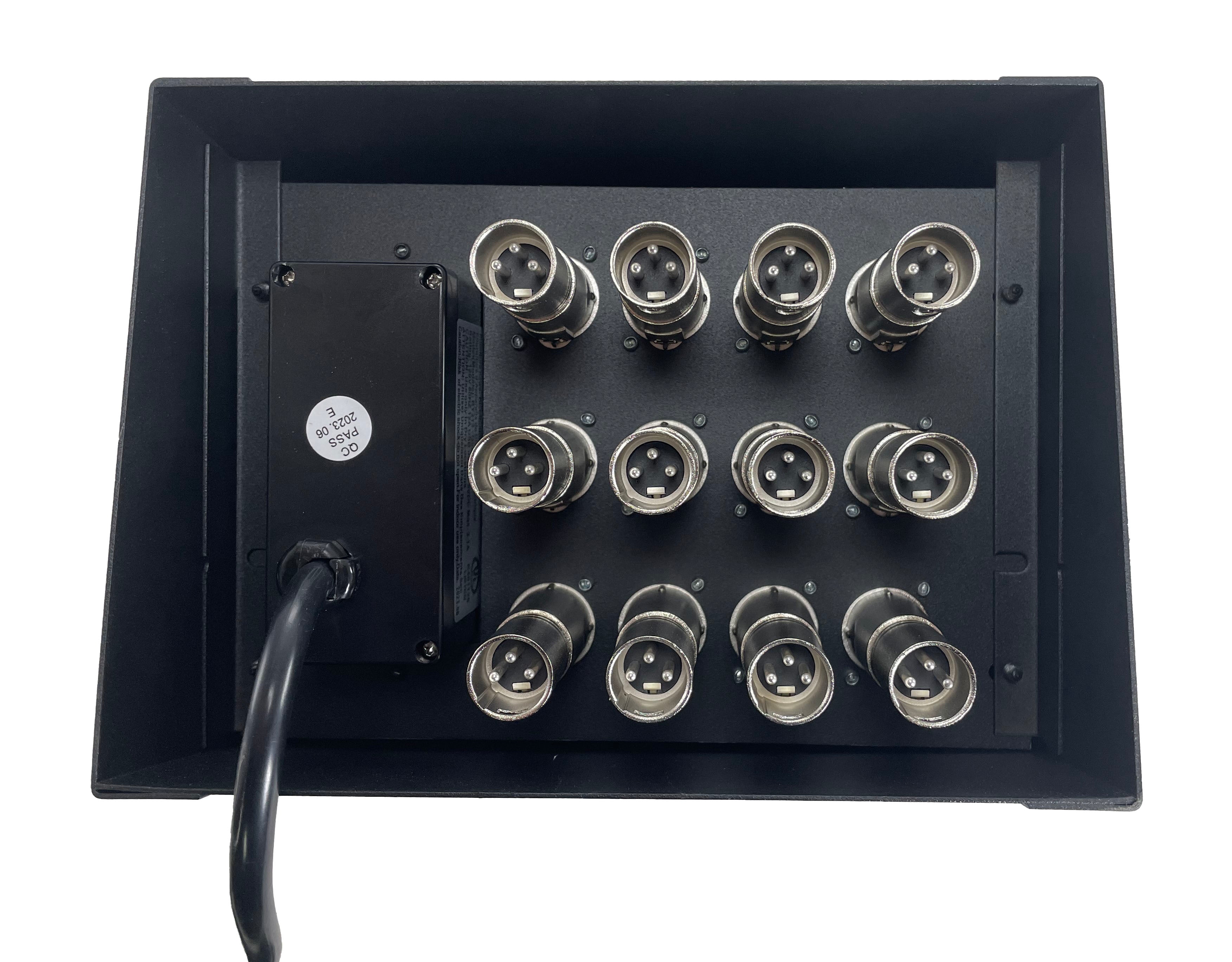

(1) PROCRAFT FPPLFT-1AC12XFFT = LARGE FEED-THRU, FLOOR POCKET, LOADED WITH 1) PRE-WIRED AC DUPLEX 12) XLR FEMALE FEED-THRU CONNECTORS

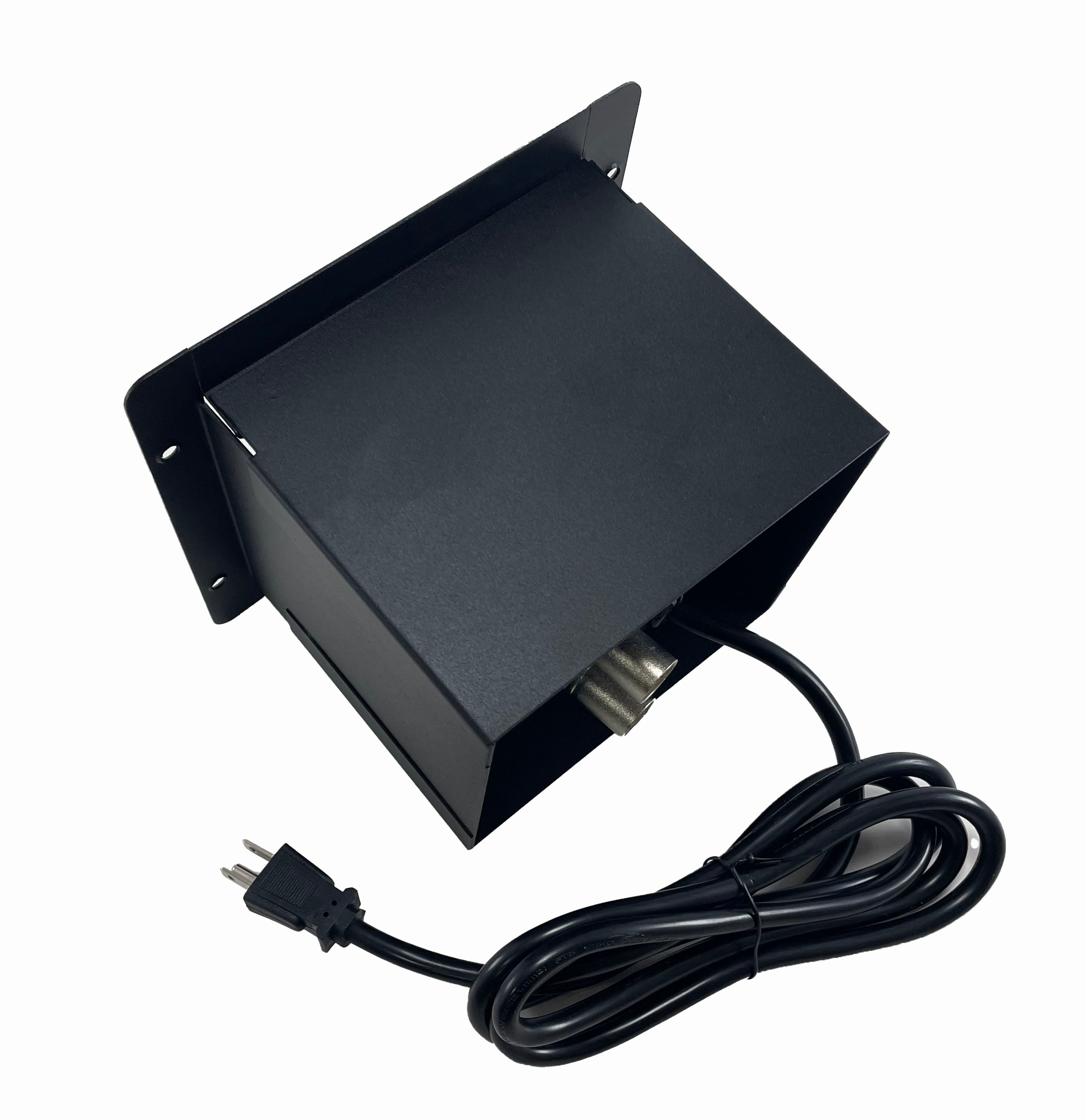

PROCRAFT now offers a series of USA-made floor pockets loaded with a UL-LISTED Pre-Wired Edison Duplex Outlet (rated at 120V / 12A) with 6ft tail + Dual 5VDC / 2.1A USB Charging Ports. This box also includes Feed-Thru Audio-Video connectors, for a super quick installation option in any venue.

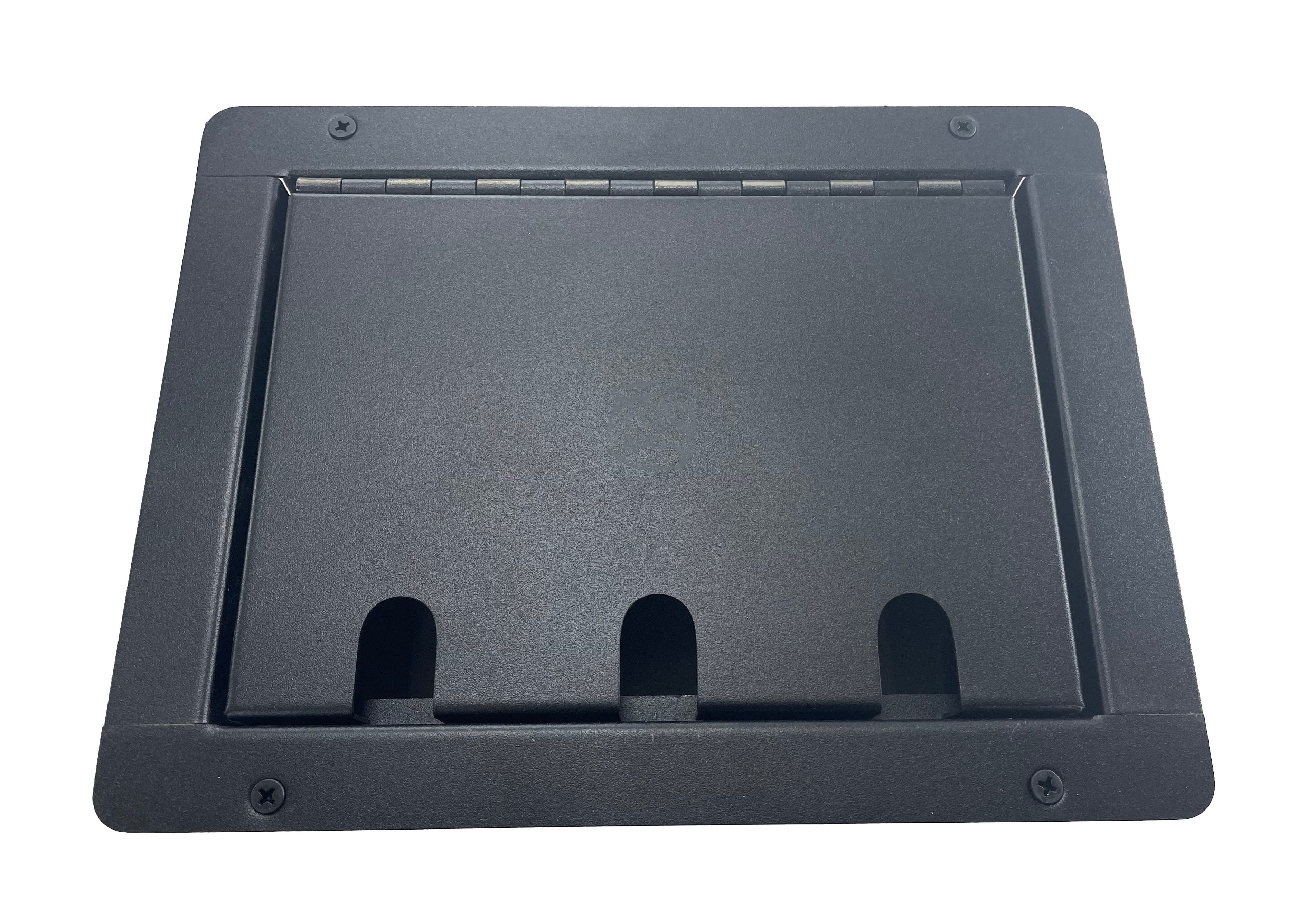

This box design features a 3-Hole lid opening for cable entry. Cable entry dimensions are 3/4 wide x 1-1/4 deep.

* The GAP LID version is also available under part number: FGPLFT-1AC12XFFT

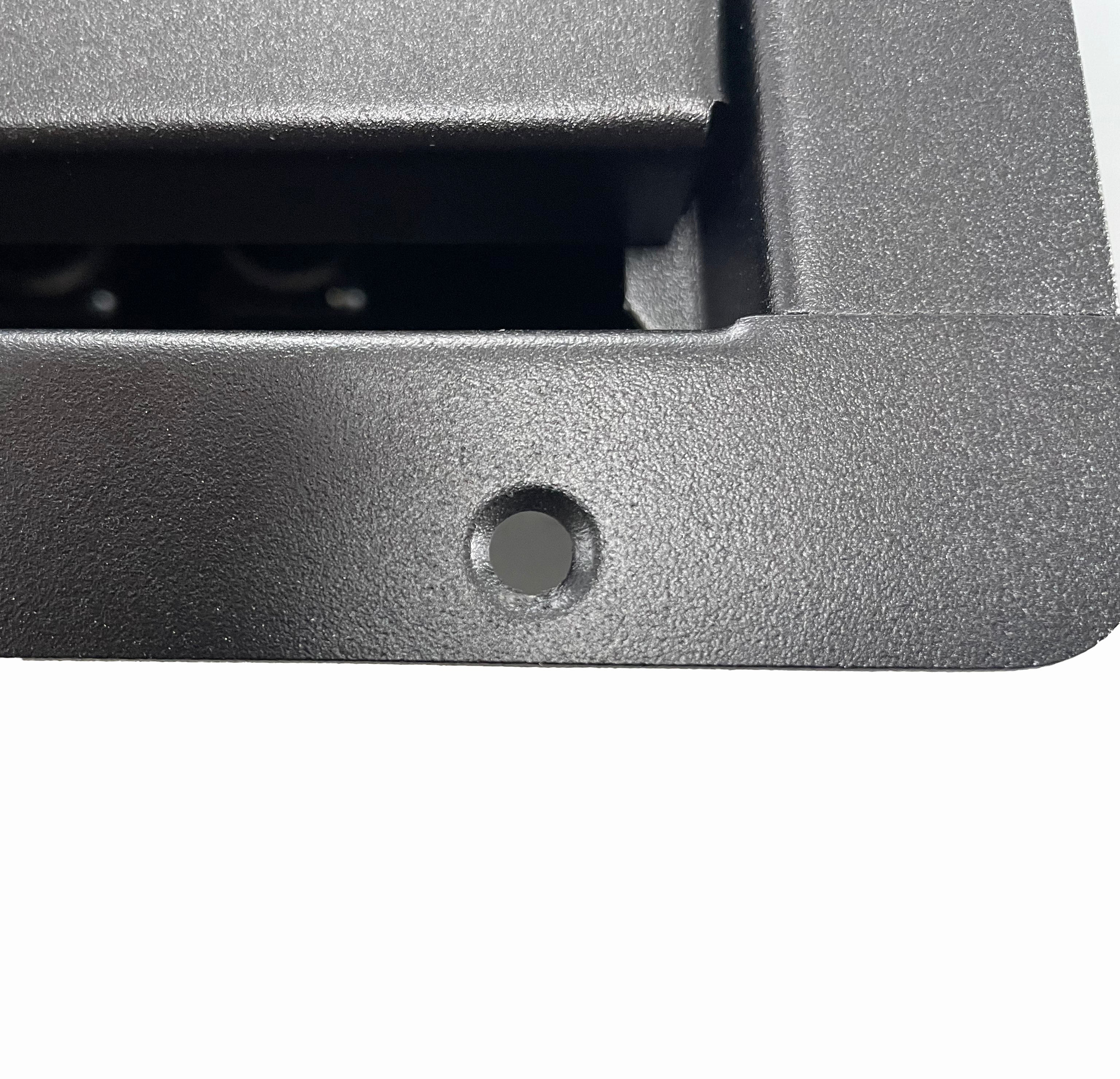

We now include countersunk external mounting holes to help provide a smooth surface after the unit is fastened to your floor covering. Mounting screws are included with each pocket.

------------------------------------------------------------------------------------------------

PLEASE NOTE: We can load this box according to your needs. This requires a direct message through the sales channel you purchased from the day your order is placed.

* DISCLAIMER: If we do not receive a message the same day the order is placed, the box will be loaded as pictured. The customer will be responsible for costs associated to swap out connectors.

PROCRAFT D-STYLE CONNECTOR OPTIONS FOR THIS BOX ARE AS FOLLOWS:

XFFT - XLRF TO XLRM FEED-THRU

XMFT - XLRM TO XLRF FEED-THRU

LQFT - 1/4" TRS / TS LOCKING TO 1/4" TRS / TS LOCKING FEED-THRU

HDFT - HDMI TO HDMI FEED-THRU

RJFT - RJ45 TO RJ45 FEED-THRU

BNFT - BNC TO BNC FEED-THRU

RCFT - RCA TO RCA FEED-THRU

35FT - 3.5MM TRS /TS TO 3.5MM TRS /TS FEED THRU

USFT - USB 2.0 TO USB 2.0 FEED-THRU

* Please note that color and style may vary on all connector options excluding the XFFT, XMFT, and LQFT

* Genuine NEUTRIK Connectors are available for an up-charge, please contact us directly

-------------------------------------------------------------

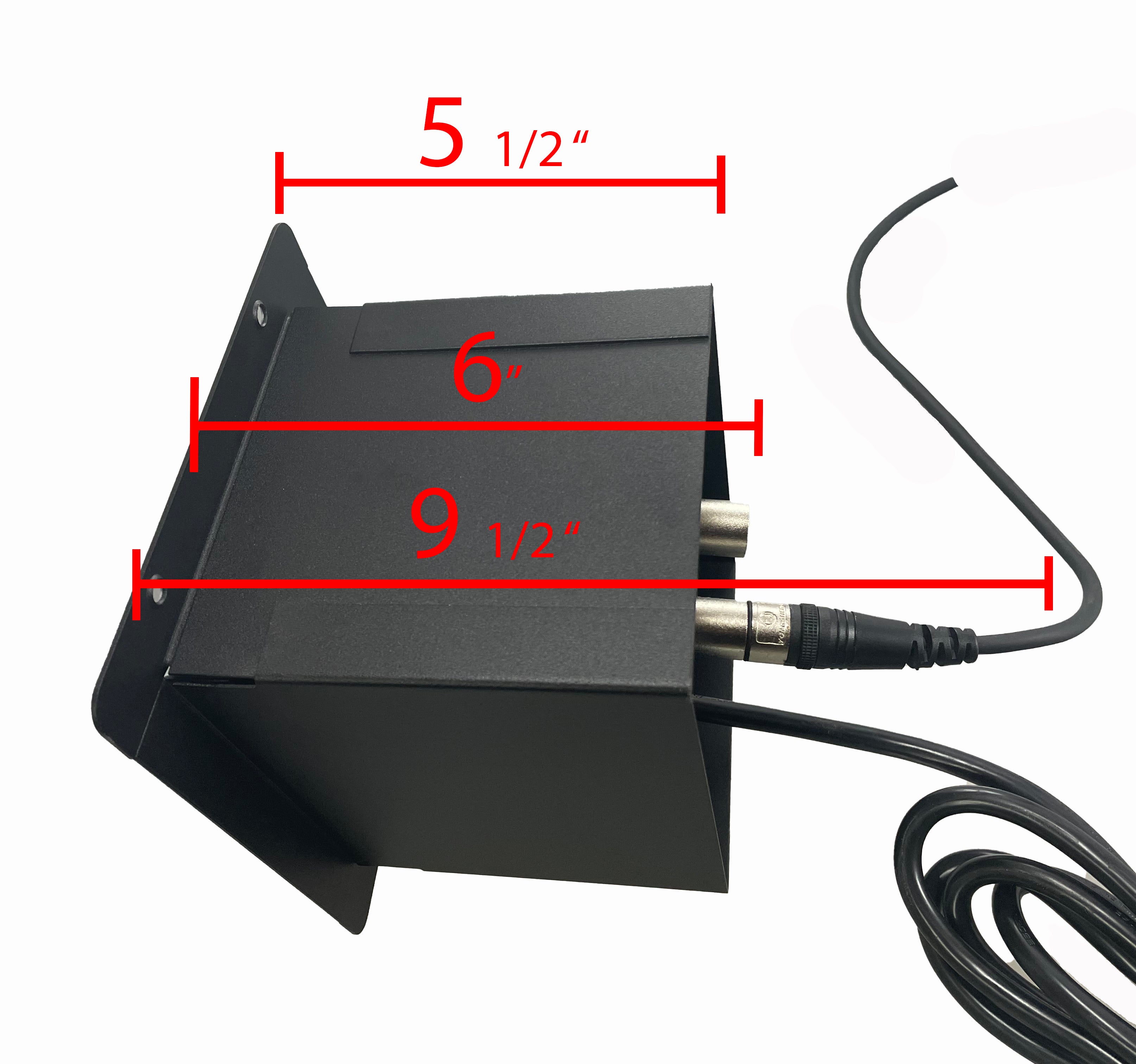

OVERALL BOX DIMENSIONS FACING THE OPENING:

10-1/4" WIDE x 8" FRONT TO BACK x 5-5/8" DEEP * (see below)

-------------------------------------------------------------

FLOOR CUT OUT TO INSTALL FACING THE OPENING:

8-3/4" WIDTH x 6-1/2" FRONT TO BACK

* DISCLAIMER: These feed-thru style pockets require 9" of clearance beneath the floor once the connecting cables are plugged in. Please double-check your available space below the surface of the platform before ordering!

THIS ENCLOSURE IS PROUDLY MADE BY HAND IN JACKSON,MISSOURI - USA
