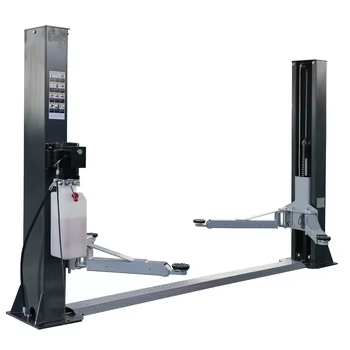

Cael HP7 Two-Post Hoist – 7,700 lb Capacity

Built for professional shops and serious home garages, the Cael HP7 Two-Post Hoist delivers heavy-duty lifting power in spaces with standard or even low ceilings. Engineered to North American electrical and safety standards, it’s the perfect solution for servicing passenger cars, light trucks, and small commercial vehicles.

Key Highlights

-7,700 lb (3,500 kg) Lifting Capacity – Handles everything from daily drivers to light-duty commercial vans and pickups.

-Low-Ceiling Ready – Overall post height only 79" (6 ft 7 in) fits garages with ceilings as low as 6 ft 5 in.

-Base-Plate Design – Stable floor-plate configuration ideal for shops without extra ceiling clearance.

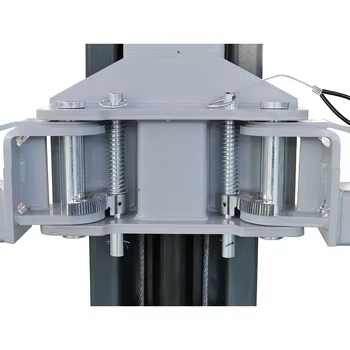

-Dual-Point Safety System – Manual safety locks on each post plus automatic arm locks for maximum security.

-CSA Certified – Power unit meets CSA standards for electrical safety in Canada.

-One-Year Parts Warranty – Backed by a full 1-year warranty on all parts for peace of mind.

Specifications

-Model: HP7

-Lifting Height: 59.4" (1,510 mm)

-Overall Height: 79" (2,002 mm)

-Overall Width: 129" (3,280 mm)

-Width Between Posts: 109" (2,770 mm)

-Drive-Through Clearance: 98" (2,480 mm)

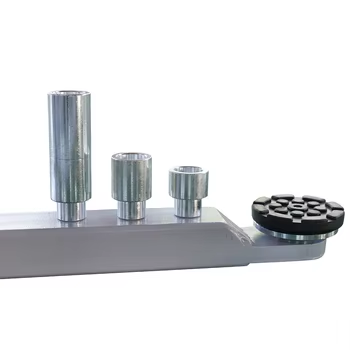

-Min. Pad Height: 4.3" (110 mm)

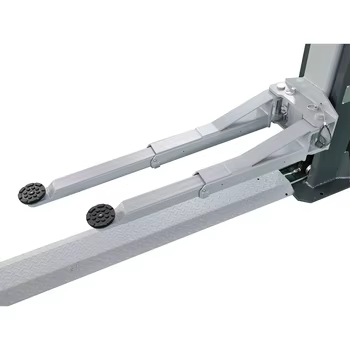

-Arm Lengths: Front 26"–37" (660–945 mm) / Rear 31"–48" (795–1,210 mm)

-Lift/Lower Time: ~50 seconds

-Noise Level: ≤ 75 dB(A)

-Motor: 220 V, 1-phase, 60 Hz.

110 V option (CSA certified)

-Finish: Industrial-grade grey powder coat
