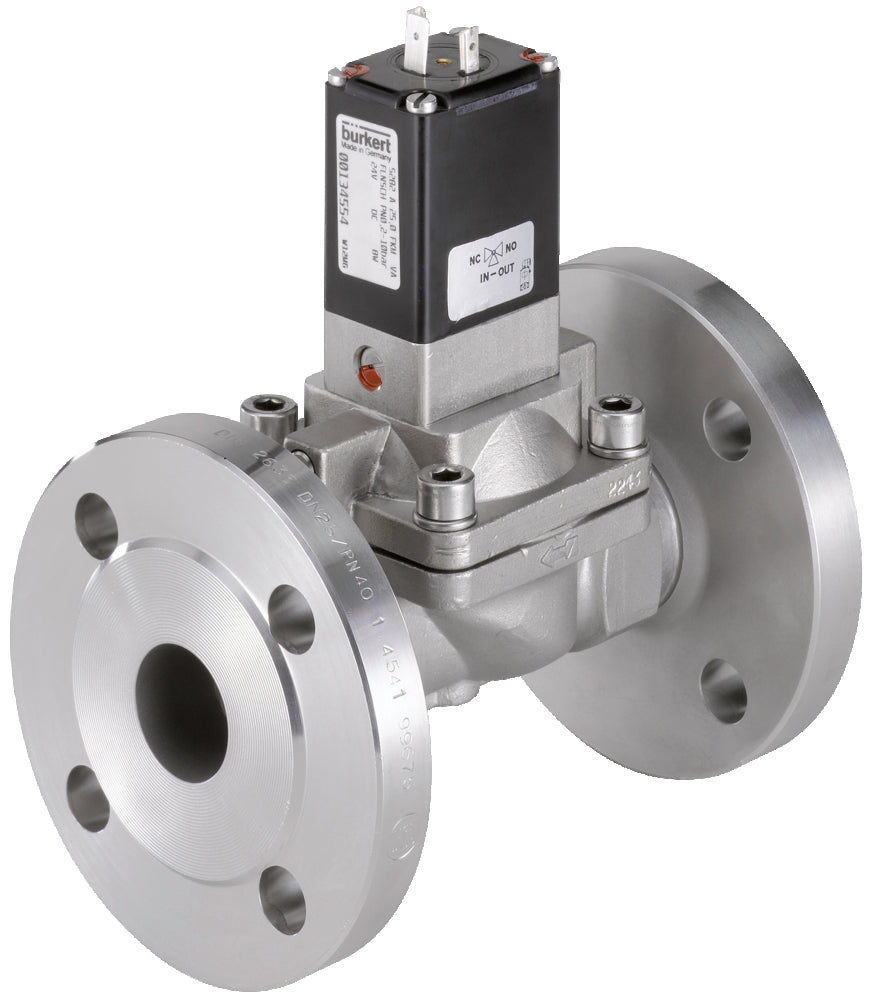

xBürkert 2/2-way solenoid valve (type 5282) with DN50 flange and a 230V AC coil. NC (default) and NO setup are both possible and indirect operating, so a small differential pressure required. Suitable for slightly contaminated and aggressive media (media separation). For media with max 90°C at a differential pressure of 0.2-10 bar. Housing of stainless steel with FKM sealing and a 50 mm orifice. The Kv-value is 40 m3/h (666.67 l/min at dp=1 bar water). Manual override feature. Prevent water hammer with the adjustable closing time.
